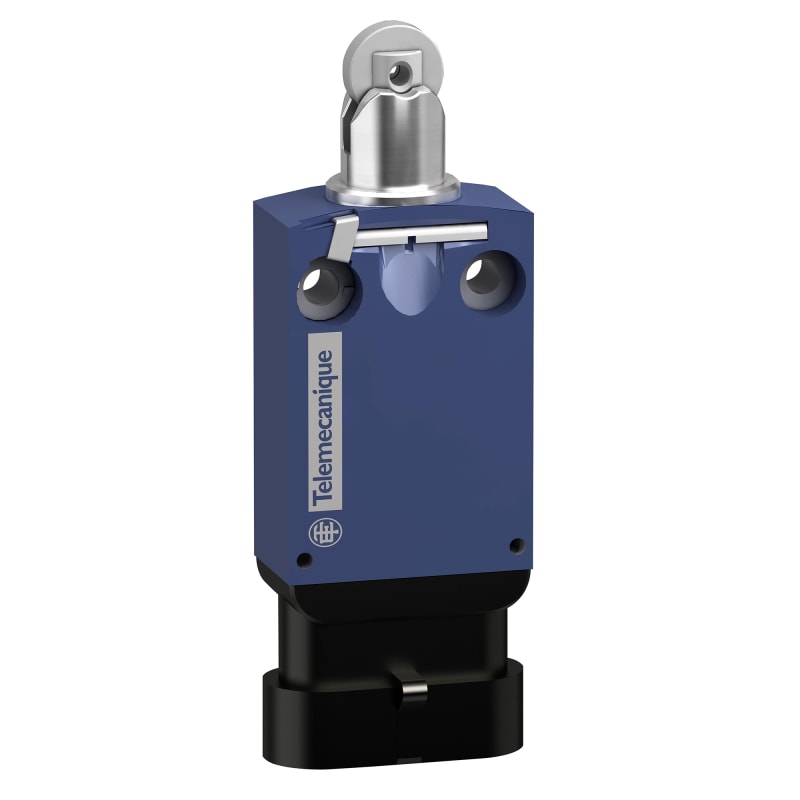

Limit switch with AMP connector (XCMD2502AM4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique limit switch metal NC+NO slow - plunger with roll - AMP.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2502AM4
- EAN / GTIN
- 3666916052938
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Switching function
- Slow-action switch
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at DC-13, 24 V
- 1 A
- Width sensor
- 32 mm
- Height of sensor
- 88 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916052938
- SAP 1200424342
- Code 82453938
Product Documentation
