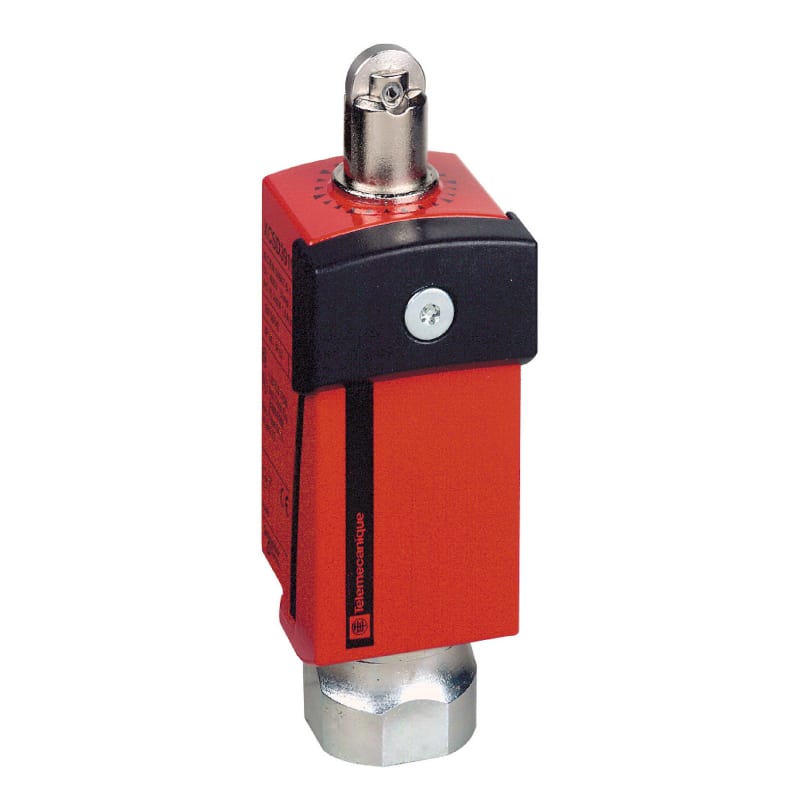

Telemecanique XCSD safety limit switch, metal body, roller plunger head, snap action, 2 NC + 1 NO with positive opening, M20 x 1.5 cable entry, IP66/IP67 XCSD3902P20

Telemecanique XCSD3902P20 safety limit switch with a metal body and a roller plunger head, for machine guarding. Snap-action 2 NC + 1 NO contact block with positive opening on the NC contacts. One ISO M20 x 1.5 tapped cable entry. Protection IP66/IP67.

Manufacturer part number (MPN)

XCSD3902P20

EAN / GTIN

3666916045558

HS code

8536.90

Sales unit

pcs

Package quantity

21 pcs

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.1 A

Housing material

Metal

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP66/IP67

Forced opening

Yes

Number of safety auxiliary contacts

1

Type of control element

Roller cam

Type of interface

None

Output electronic

No

Width sensor

34 mm

Height of sensor

10 mm

Length of sensor

35 mm

Switching function latching

No

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

Alignment of the control element

Roller cam straight

Country of origin

France

HS Code

8536.90

• EAN 3666916045558
• SAP 1000342065
• Code 8976945
