Telemecanique XCSLF3838312 Safety Limit Switch, 3 NC + 3 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSLF3838312 safety limit switch with positive opening contacts, 3 NC + 3 NC contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLF3838312
- EAN / GTIN
- 3666916047477
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- Contact configuration
- 3 NC + 3 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 3
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047477
- SAP 1000336187
- Code 8367612
Product Documentation
More from Telemecanique
Telemecanique
Schneider Electric single foot switch - IP66 - without cover - metallic - orange - 1 NC + 1 NO XPER110
Telemecanique
Telemecanique XZCP0566L5 Sensor Cable, M8 female straight, 3-pin, 5 m
Telemecanique
Telemecanique XXS30P8PPM12 Ultrasonic Sensor, M30, Sn 8 m, PNP, M12 connector
Telemecanique
Telemecanique ZB5AA18 Pushbutton Head, White, for Harmony XB5 (plastic)
Telemecanique

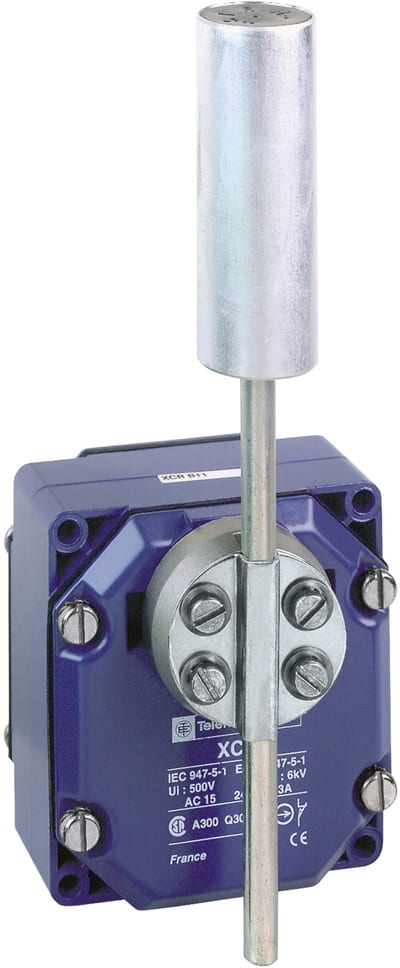

Telemecanique XCRT115 Conveyor Belt Limit Switch 2 CO, Metal Housing IP65
