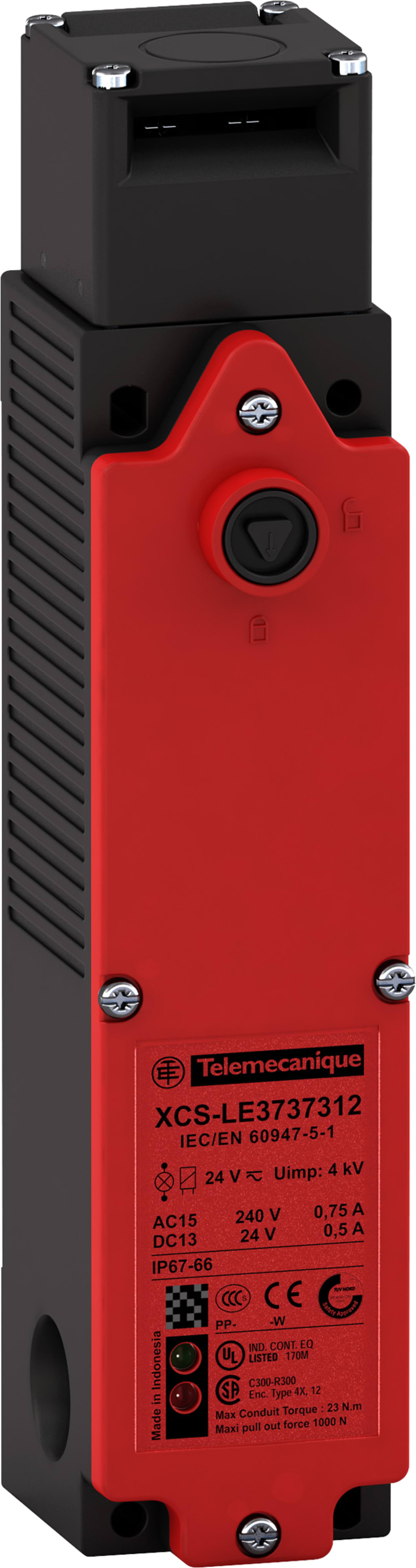

Telemecanique Preventa Safety Interlock Switch 24 V 2 NO + 4 NC

Telemecanique XCSLE3737312 is a Preventa safety interlock switch with solenoid guard locking, plastic housing, 24 V AC/DC, 2 NO + 4 NC contact configuration and metric M20 cable entry. Operating-current locking principle, guard-locking force 1400 N, IP67K. Ambient temperature range -25 to 60 degrees C. Supplied in packs of eight.

Manufacturer part number (MPN)

XCSLE3737312

EAN / GTIN

3666916047941

Sales unit

pcs

Package quantity

8 pcs

Voltage

24 V

Contact configuration

2 NO + 4 NC

Type of locking

Operating current principle

Rated operation current Ie at AC-15, 230 V

0.75 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

Yes

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Degree of protection (IP)

IP67K

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

24 V

Rated control supply voltage magnet drive AC 60 Hz

24 V

Rated control supply voltage magnet drive DC

24 V

Rated operation current Ie at DC-13, 24 V

0.55 A

Width sensor

44 mm

With escape release

No

Height of sensor

205 mm

Length of sensor

51 mm

Ambient temperature during operating

-25–60 °C

Guard locking force

1400 N

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

Indonesia

HS Code

8536.50

• EAN 3666916047941
• SAP 1000336172
• Code 81085304
