Telemecanique XCSLE3535312 Safety Interlock Switch, 24 V, 4 NO + 2 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSLE3535312 is a plastic-housed safety interlock switch with mechanical guard locking on the operating-current principle, wired 4 NO + 2 NC. Coil is 24 V AC/DC with 0.75 A AC-15 230 V and 0.55 A DC-13 24 V contact rating; guard locking force is 20 N. The sensor measures 44 by 205 by 51 mm with metric cable entry, IP67K protection, and slow-action contacts with status indication. Country of origin is Indonesia.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLE3535312
- EAN / GTIN
- 3666916047972
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- Contact configuration
- 4 NO + 2 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047972
- SAP 1000336170
- Code 81085287
Product Documentation
More from Telemecanique
Telemecanique
Contact Block (XENC1111)
Telemecanique
Telemecanique XUM6APXBM8 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.8 m, PNP, M8 connector
Telemecanique
Telemecanique ZCKE65 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XZCPVB1564L5 Sensor Cable, M12 male, PVC, 5 m
Telemecanique
Telemecanique XXA30B2AM12 Ultrasonic Sensor M30, Metal, 90° Head, 4–20 mA, Range 2 m, M12 connector
Telemecanique
XUSL mounting fitting 4 pcs
XUSZBMC4
Telemecanique
Telemecanique XZCP29P11L10 Sensor Cable, M12 female straight, 10 m
Telemecanique

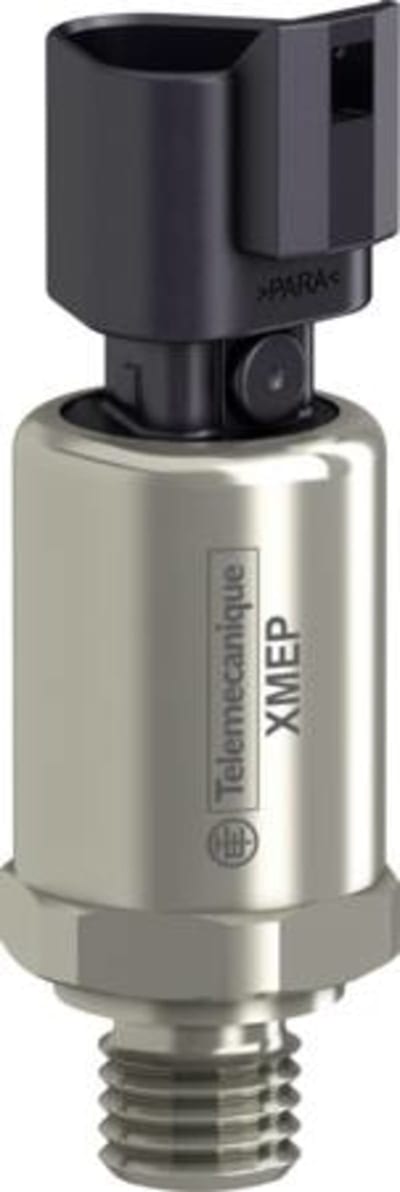

Telemecanique XMEP5K0PT230 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
