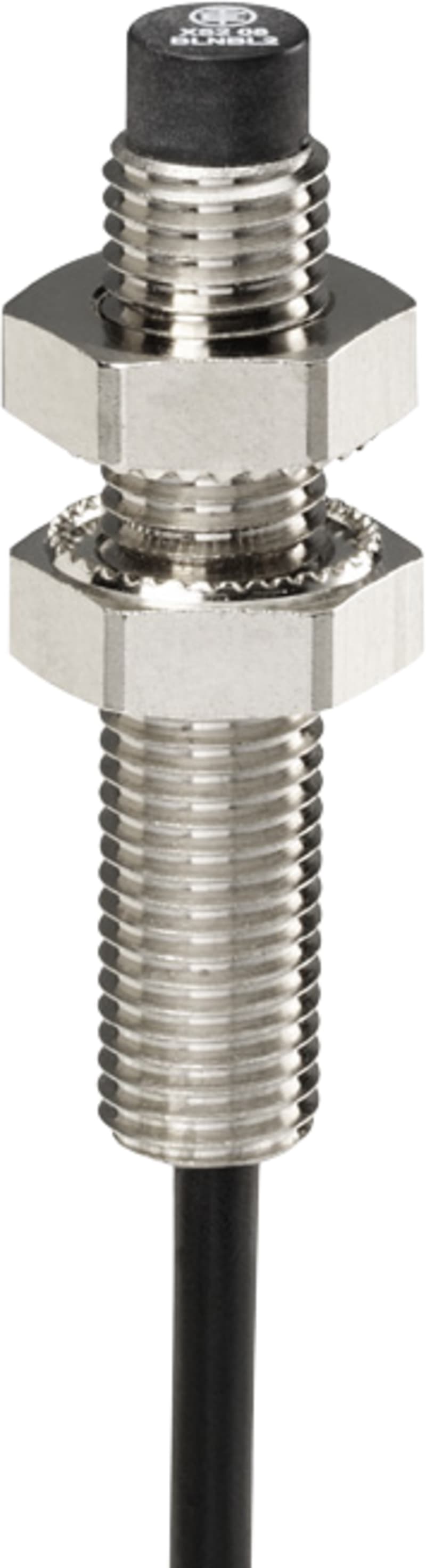

Telemecanique XS108B3NAM12 Inductive Proximity Sensor Ø8 mm, Threaded, NPN NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XS108B3NAM12 inductive proximity sensor, Ø8 mm threaded barrel, NPN NO output, sensing distance 2.5 mm, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XS108B3NAM12
- EAN / GTIN
- 3666916019078
- Sales unit
- pcs
- Diameter
- 8 mm
- Output type
- NPN
- Connector
- M12
- Length of sensor
- 45 mm
- Diameter sensor
- 8 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 2.5 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact
- Type of switching output
- NPN/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Supply voltage
- 12–24 V
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- Switching frequency
- 2500 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Metal
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916019078
- SAP 1000020835
- Code 8173076
