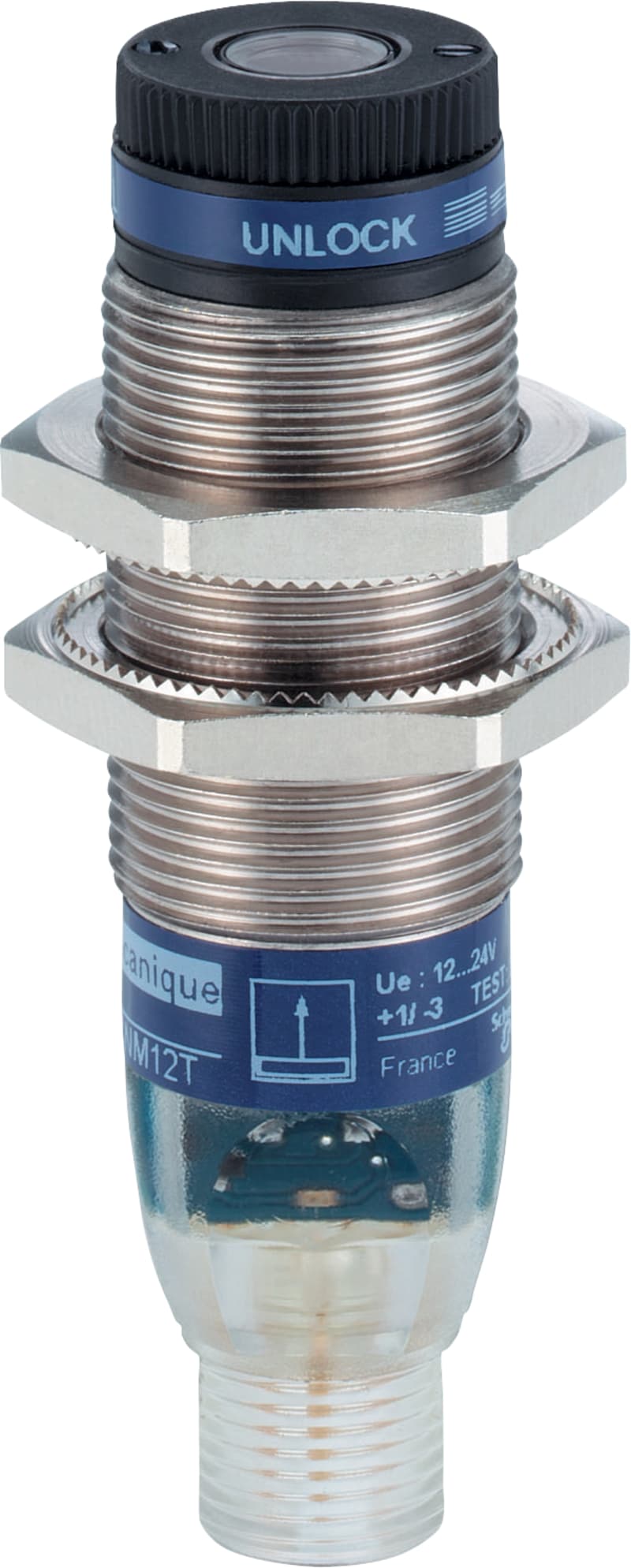

Telemecanique XUBLBNCNM12 Laser Photoelectric Sensor M18, Metal, NPN, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUBLBNCNM12 XUB M18 cylindrical laser photoelectric sensor, metal housing, NPN output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUBLBNCNM12
- EAN / GTIN
- 3666916032794
- Sales unit
- pcs
- Diameter
- 18 mm
- Output type
- NPN
- Connector
- M12
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 100000 mm
- Max. switching distance
- 100000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -40–70 °C
- Switching frequency
- 1500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Multi-coloured LED
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916032794
- SAP 1000013650
- Code 8118121
Product Documentation
More from Telemecanique
Telemecanique
CONTACT ELEMENTENT 2 X NC, Ith=10 A
ZBE504
Telemecanique
Telemecanique XUB2AKSWM12T Photoelectric Through-Beam Emitter, Plastic, 90° Head, M12 connector
Telemecanique
Telemecanique XMLR600M1P75 Pressure Sensor with Display, 0–600 bar, 0–10 V + 1× PNP
Telemecanique

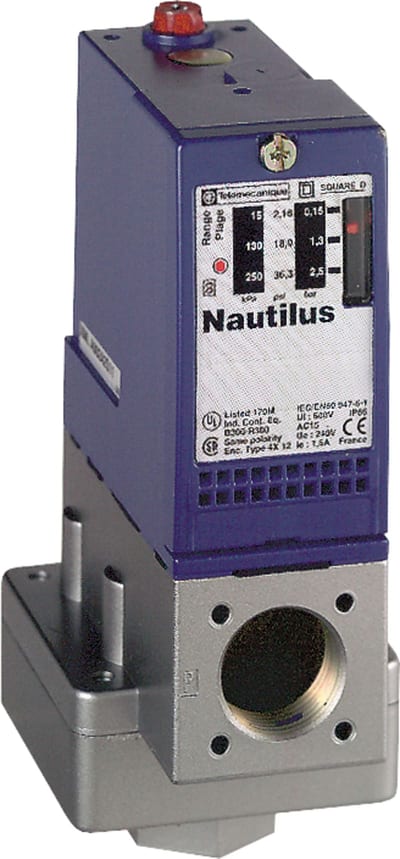

Telemecanique XMLA002A2S11 Pressure Switch, 0–2.5 bar
Telemecanique

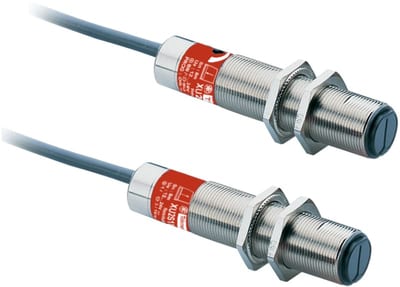

Telemecanique XU2S18PP340L5 Photoelectric Through-Beam Set Ø18 mm, Sn 8 m, 5 m Cables
Telemecanique
Telemecanique XMLR025G1N26 Pressure Sensor with Display, 0–25 bar, 4–20 mA + 1× NPN
Telemecanique
Telemecanique XMLA010A2S12 Pressure Switch, 0.6–10 bar
Telemecanique
Telemecanique XZCP57V12L15 Sensor Cable, M12 female straight, 2-pin, PUR, 15 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUBLBNCNM12?
- XUBLBNCNM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUBLBNCNM12.
- What is the HS code for XUBLBNCNM12?
- The customs tariff (HS) code for XUBLBNCNM12 is 8536.50.
- Who manufactures XUBLBNCNM12?
- XUBLBNCNM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUBLBNCNM12?
- Yes — the XUBLBNCNM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUBLBNCNM12?
- The minimum order quantity is 1.
- Is XUBLBNCNM12 available?
- Yes — XUBLBNCNM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
