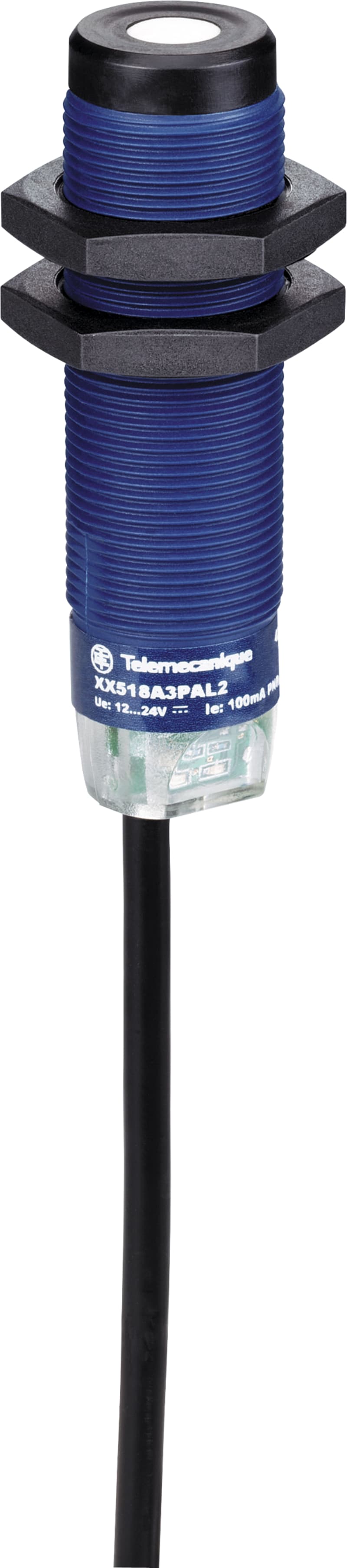

Telemecanique XX518A3PAL2 Ultrasonic Sensor, Sn 0.5 m, PNP, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX518A3PAL2 OsiSense XX ultrasonic proximity sensor, Sn 0.5 m, PNP output, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XX518A3PAL2
- EAN / GTIN
- 3666916079850
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 40 Hz
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 51 mm
- Setting procedure
- Parameterization
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0.7 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 64 mm
- Adjustable distance
- 51–508 mm
- Measuring range length
- 51–508 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916079850
- SAP 1000026375
- Code 8238146
Product Documentation
More from Telemecanique
Telemecanique
Photocell Kontrast PNP M12
XUKR1PSMM12
Telemecanique
Telemecanique XMEP600BD21FQ Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique XUYFANEP60015 Infrared Fork Sensor 59 × 15 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique OsiSense XS8D1A1NAL2 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, NPN, NO, pre-wired cable
Telemecanique
Telemecanique XMLP040BD790 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Telemecanique
Photocell M18 MM (XU2M18AP20D)
Telemecanique
Telemecanique ZCKY61 Actuator Lever for ZCK Limit Switches
Telemecanique
Telemecanique XCKN2145P20 Limit Switch, Rotary Roller Lever, NC+NO, Plastic Body, M20 cable entry
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XX518A3PAL2?
- XX518A3PAL2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XX518A3PAL2.
- What is the HS code for XX518A3PAL2?
- The customs tariff (HS) code for XX518A3PAL2 is 8544.42.
- Who manufactures XX518A3PAL2?
- XX518A3PAL2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XX518A3PAL2?
- Yes — the XX518A3PAL2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XX518A3PAL2?
- The minimum order quantity is 1.
- Is XX518A3PAL2 available?
- Yes — XX518A3PAL2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
