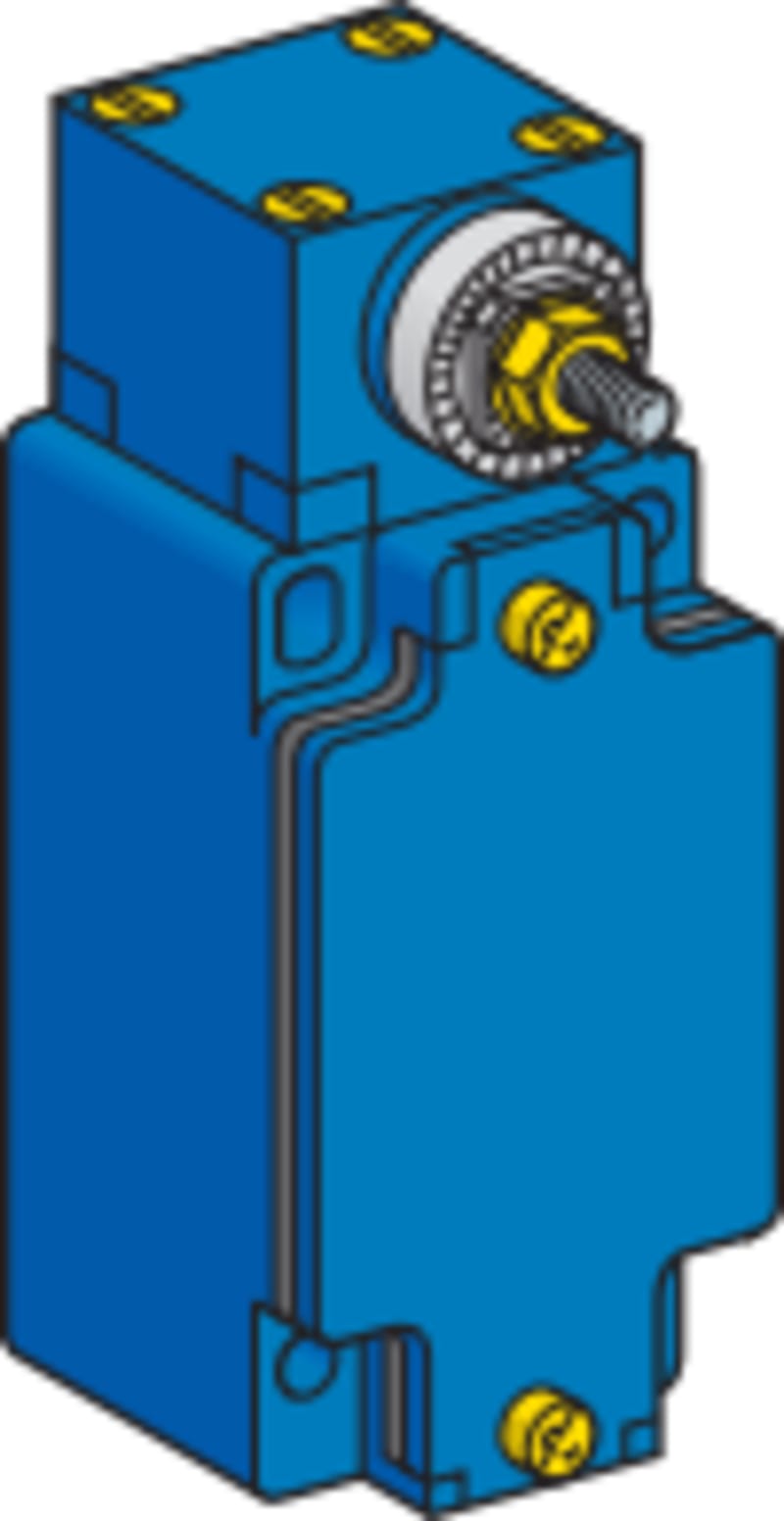

Telemecanique ZCKJ4104H29 Limit Switch Body, Metal, 2NO+2NC, Snap-action, Plug-In, M20 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKJ4104H29 limit switch body (contact block), metal housing, 2NO+2NC snap-action contacts, plug-in version, M20 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKJ4104H29
- EAN / GTIN
- 3666916044315
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 9 pcs
- Thread size
- M20
- Contact configuration
- 2 NO + 2 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 43 mm
- Height of sensor
- 109 mm
- Length of sensor
- 60 mm
- Switching function latching
- No
- Number of contacts as change-over contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916044315
- SAP 1000341942
- Code 8376776
