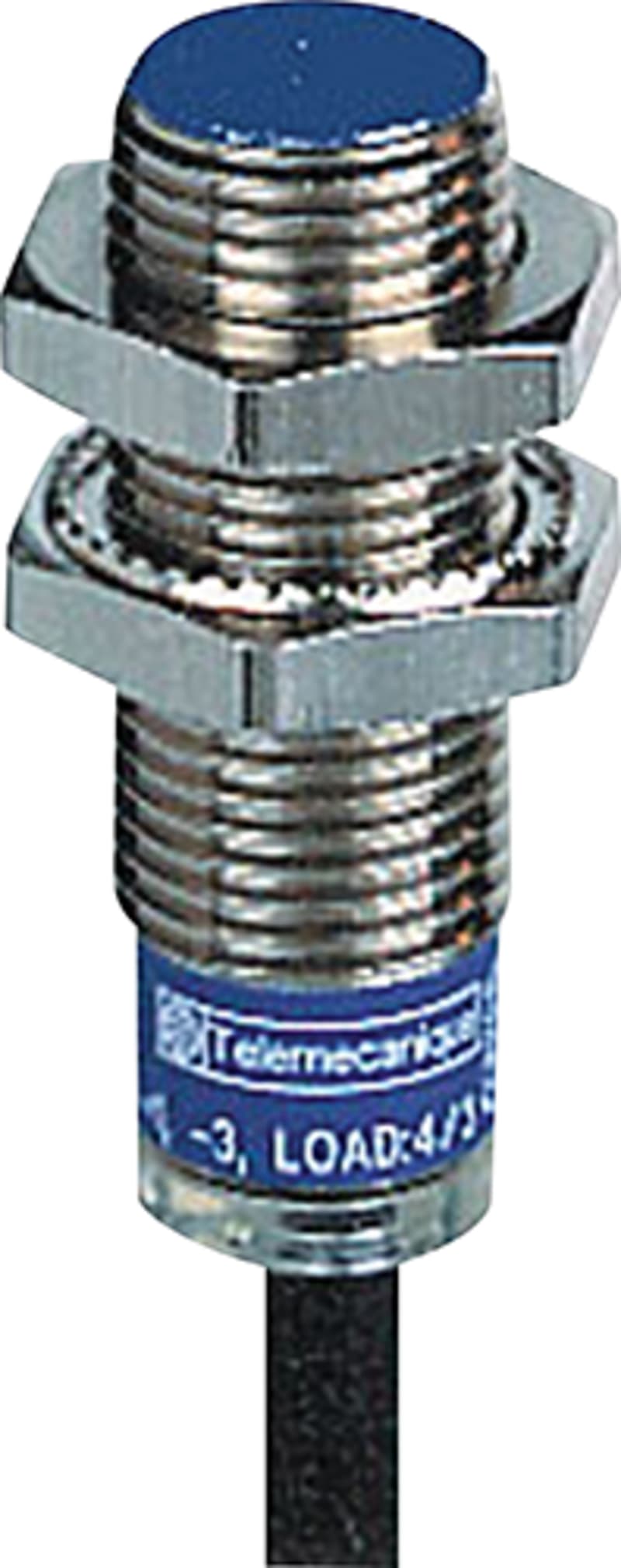

Telemecanique OsiSense XS512BSDAM12 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS512BSDAM12 is an OsiSense XS inductive proximity sensor in an M12 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 2 mm. It provides a 2-wire DC output, switching NO (normally open), via M12 connector (4-pin). Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS512BSDAM12
- EAN / GTIN
- 3666916014479
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M12 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 2 mm
- Output
- 2-wire DC
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 12…24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916014479
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCE09 Operating Head for XC Standard Limit Switches
Telemecanique
Telemecanique ZCKD33 Operating Head for ZCK Limit Switches
Telemecanique
Photocell Ø8mm Receiver
XUAH0214
Telemecanique
Telemecanique XCKD2118M12 Limit Switch, Plastic Body, 1 NO + 1 NC, M12 connector
Telemecanique
Telemecanique XUB5APBNM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NC, M12 connector
Telemecanique
Telemecanique OsiSense XS1L04PA310S Inductive Proximity Sensor — Ø4 mm barrel, Sn 1 mm, PNP, NO, M8 connector
Telemecanique
Telemecanique XCMD2510L1 Limit Switch, Metal Plunger, 1 NO + 1 NC
Telemecanique
Telemecanique XMLPM09BD21F Pressure Transmitter, 0–9 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS512BSDAM12?
- XS512BSDAM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS512BSDAM12.
- What is the HS code for XS512BSDAM12?
- The customs tariff (HS) code for XS512BSDAM12 is 8536.50.
- Who manufactures XS512BSDAM12?
- XS512BSDAM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS512BSDAM12?
- Yes — the XS512BSDAM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS512BSDAM12?
- The minimum order quantity is 1.
- Is XS512BSDAM12 available?
- Yes — XS512BSDAM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
