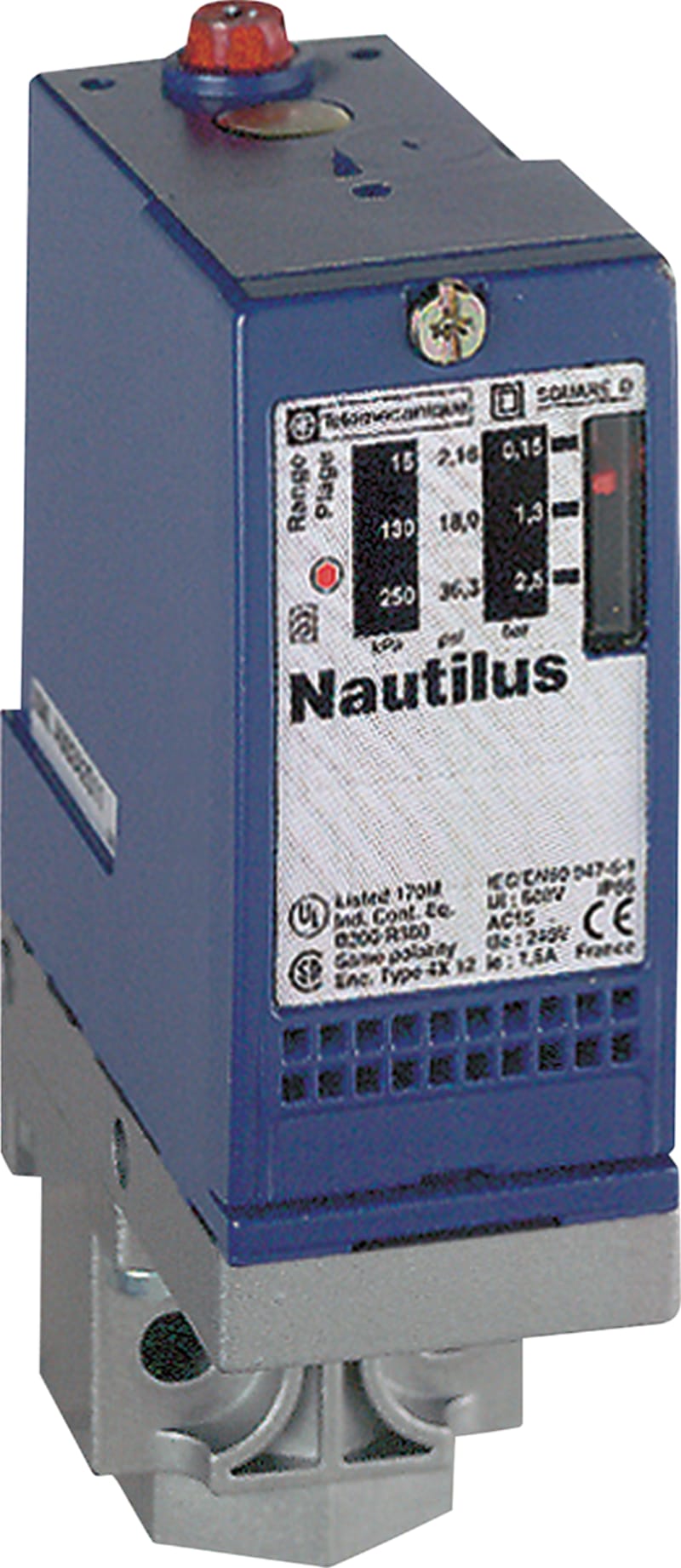

Telemecanique XMLA020A2C11 Pressure Switch, 7–20 bar, DIN connector

Telemecanique XMLA020A2C11 OsiSense XMLA electromechanical pressure switch, adjustable range 7–20 bar, DIN connector.

Manufacturer part number (MPN)

XMLA020A2C11 EAN / GTIN: 3666916025925 Sales unit: pcs Package quantity: 13 pcs Pressure: 7-20 bar Width: 35 mm Height: 113 mm Depth: 75 mm Connection: Internal thread cylindrical BSPP-G (ISO 228-1) With display: No With manual on/off switch: No Initial setting: 1000–20000 hPa End setting: 600–19000 hPa Max. operation pressure: 25000 hPa Number of auxiliary contacts as change-over contact: 1 Explosion-proof: No Degree of protection (IP): IP65 Switch off pressure: 0.6–19 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 90 bar Engaging pressure: 1–20 bar Electronic version: No Suitable as 2-point controller: No Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 45 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 1 bar Max. operating pressure: 20000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025925
• SAP 1000341824
• Code 8998290
