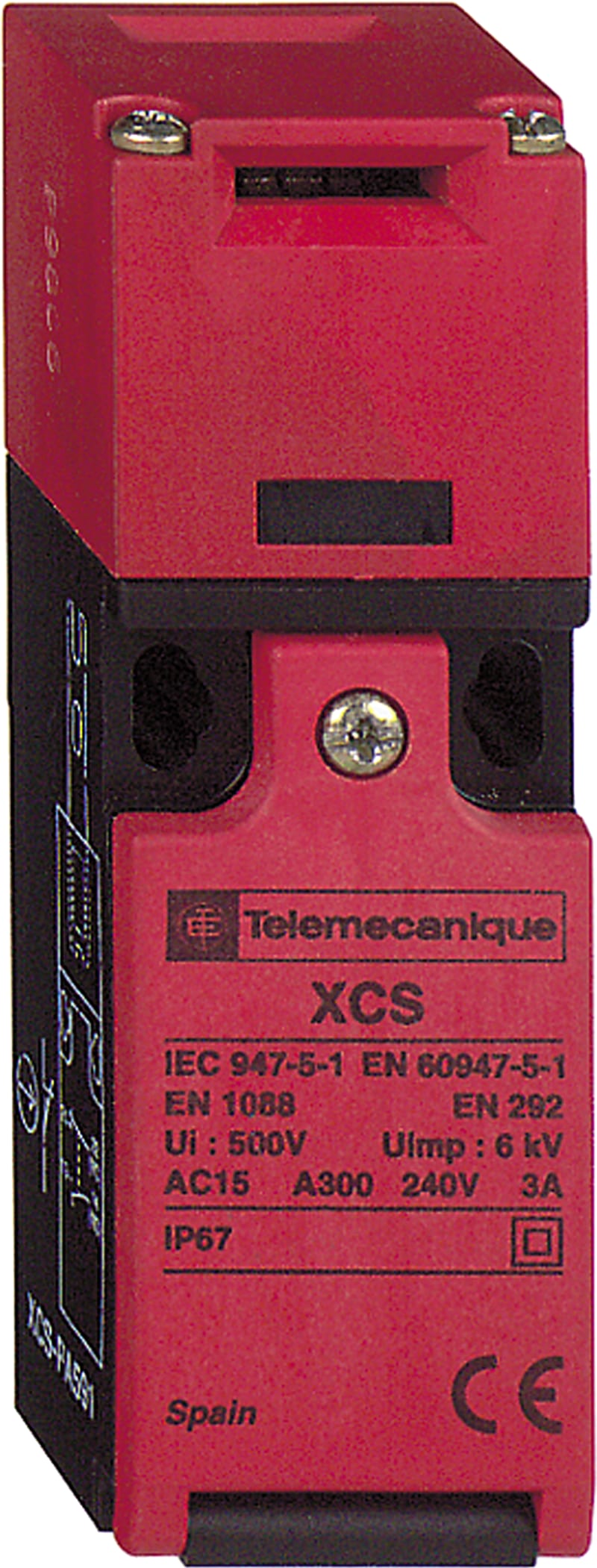

Telemecanique XCSPA991 Safety Limit Switch, 2 NC, PG11 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSPA991 safety limit switch with positive opening contacts, 2 NC contacts, PG11 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSPA991
- EAN / GTIN
- 3666916047125
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Contact configuration
- NC + NC + NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 30 mm
- Height of sensor
- 94 mm
- Length of sensor
- 30 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047125
- SAP 1000530372
- Code 81017064
Product Documentation
