Telemecanique XCMD2116M12 Limit Switch, Short Roller Lever, Metal Body, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description

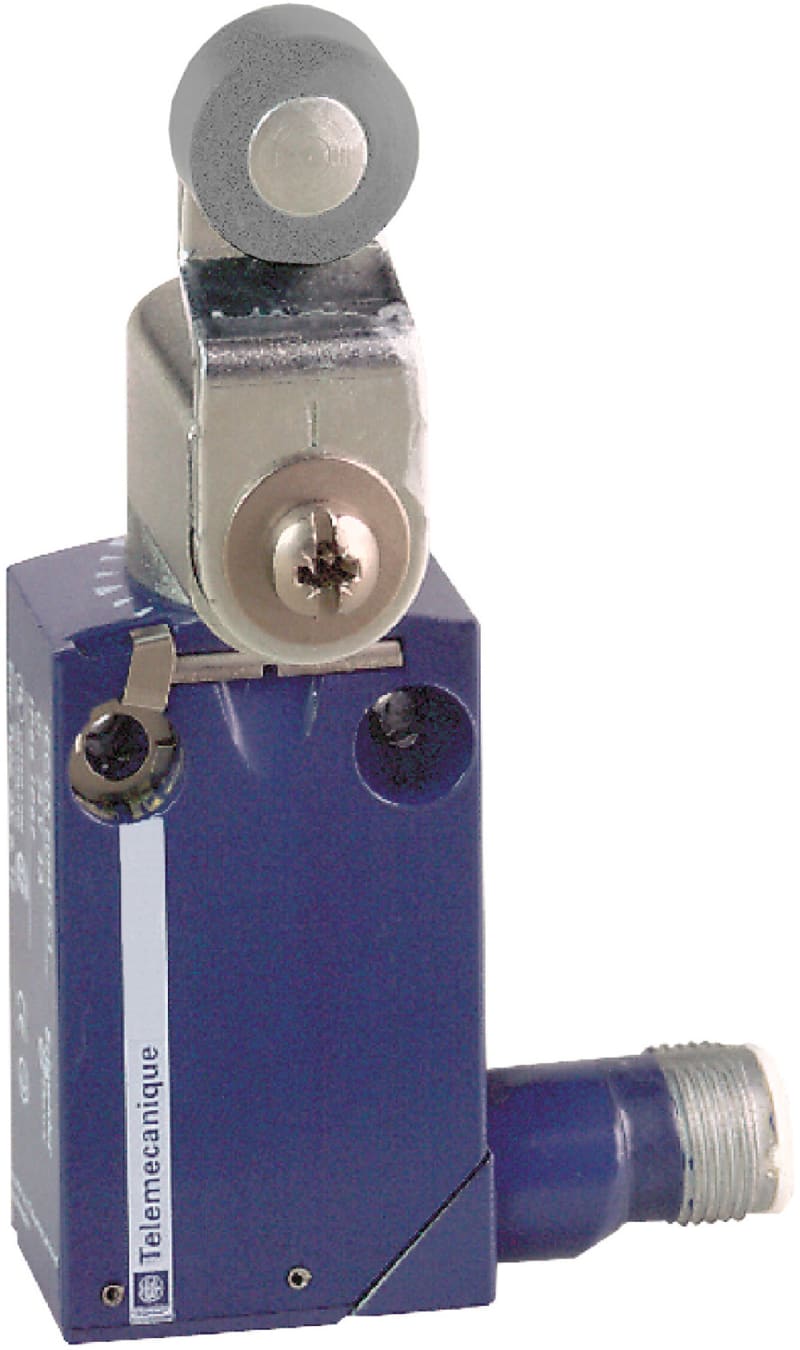

Telemecanique OsiSense XCMD2116M12 limit switch with short roller lever actuator, switching contacts, metal body, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2116M12
- EAN / GTIN
- 3666916093313
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Connector M12
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as change-over contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093313
- SAP 1000254591
- Code 81136200
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC20FCM30B Field-Wireable Connector, Female, Angled
Telemecanique
Telemecanique OsiSense XS8C4A4PCG13 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 40 mm, PNP, NO or NC, screw terminals (Pg cable gland)
Telemecanique
Telemecanique XS118B3NAM12 Inductive Proximity Sensor Ø18 mm, Threaded, NPN NO, M12 connector
Telemecanique
PUR skj kab M12-M12 B coded 4P
XZCRVB5211L5
Telemecanique
Telemecanique XUSL2E3BB081N Safety Light Curtain Type 2
Telemecanique

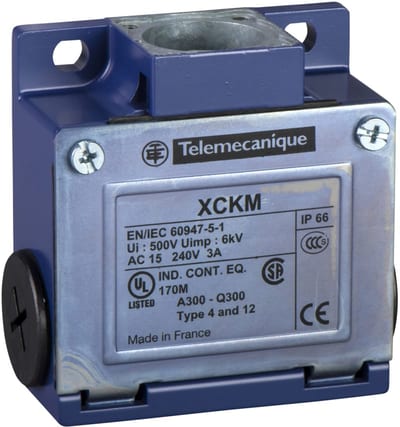

Telemecanique ZCKM1 Limit Switch Body, Metal, Snap-action, PG cable entry
