Photocell Ø8 mm receiver plug
Pricing
Request a quote
We reply within 24 hours
Product Description

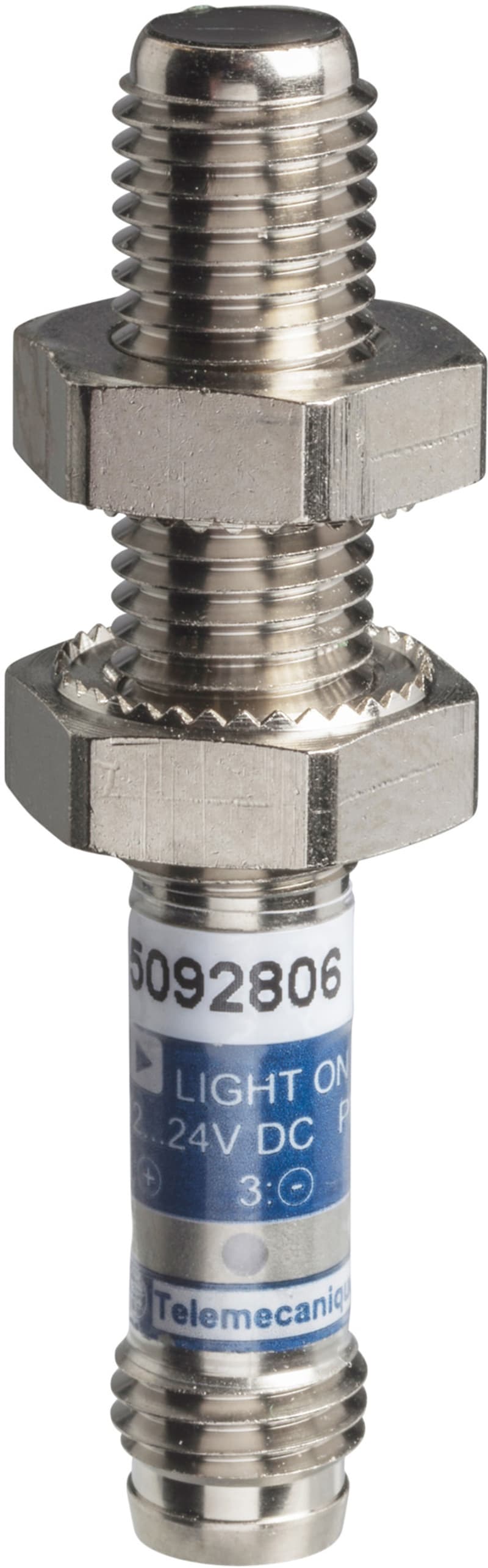

Telemecanique XUAH0224S Photocell Ø8 mm motaker PNP NC with M8 plug.
Technical Specifications
- Manufacturer part number (MPN)
- XUAH0224S
- EAN / GTIN
- 3666916036914
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Diameter
- 8 mm
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 4000 mm
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- Yes
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M8
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 8 mm
- Length of sensor
- 47 mm
- Sensing mode
- Light switching
- Housing material
- Metal
- Min. reflector distance
- 0 mm
- Switching frequency
- 2000 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Laser diode, infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916036914
- SAP 1000257158
- Code 81148598
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUBTSNSNM12 Photoelectric Sensor M18, Retroreflective for Transparent Objects, Stainless Steel, NPN, M12 connector
Telemecanique
Telemecanique XCKN2945G11 Limit Switch, 1 NC + 1 NO, PG11 entry
Telemecanique
Telemecanique XUB9BPAWL2 Photoelectric Sensor, Polarised Reflex, Metal, PNP, NO, 90° Head, 2 m cable
Telemecanique
Telemecanique XS1M18MA250K Inductive Proximity Sensor, M18
Telemecanique
Telemecanique OsiSense XS508B1NAL2 Inductive Proximity Sensor — M8 barrel, Sn 1.5 mm, NPN, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XMLAM01V2S11 Pressure Switch, 0.28–1 bar
Telemecanique
Telemecanique XZCP1662L2 Sensor Cable, M8 female, 3-pin, 2 m
Telemecanique
Telemecanique OsiSense XS8C4A1PCG13 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, PNP, NO or NC, M12 connector (4-Pin)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUAH0224S?
- XUAH0224S can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUAH0224S.
- What is the HS code for XUAH0224S?
- The customs tariff (HS) code for XUAH0224S is 8536.50.
- Who manufactures XUAH0224S?
- XUAH0224S is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUAH0224S?
- Yes — the XUAH0224S datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUAH0224S?
- The minimum order quantity is 1.
- Is XUAH0224S available?
- Yes — XUAH0224S is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
