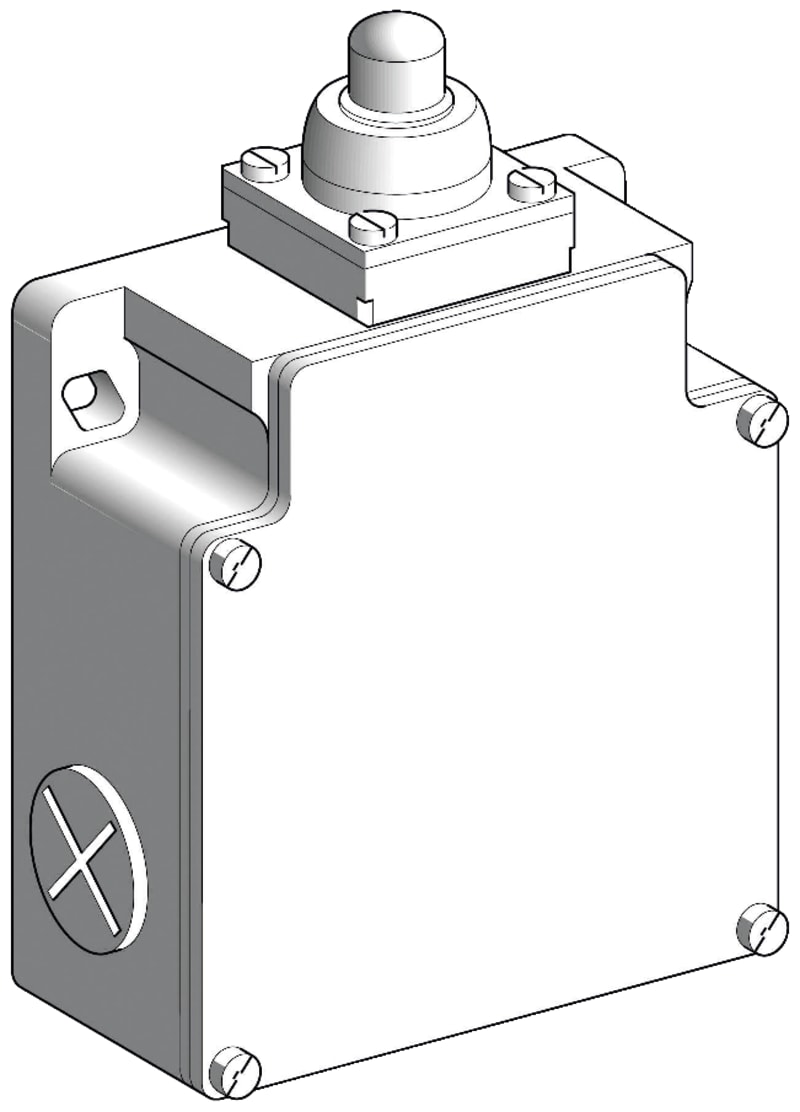

Telemecanique XCKML110H29 Limit Switch, Metal Plunger, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKML110H29 limit switch (position switch), metal plunger actuator, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKML110H29
- EAN / GTIN
- 3666916057988
- HS code
- 8536.90
- Sales unit
- pcs
- Cable entry
- M20
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 81 mm
- Height of sensor
- 77 mm
- Length of sensor
- 35.6 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916057988
- SAP 1000341732
- Code 8998093
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLRM01G1P25 Pressure Sensor with Display, 0–1 bar, 4–20 mA + 1× PNP
Telemecanique

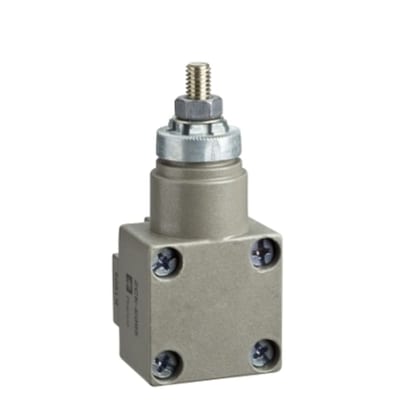

Telemecanique ZCKE095 Operating Head for ZCK Limit Switches
Telemecanique

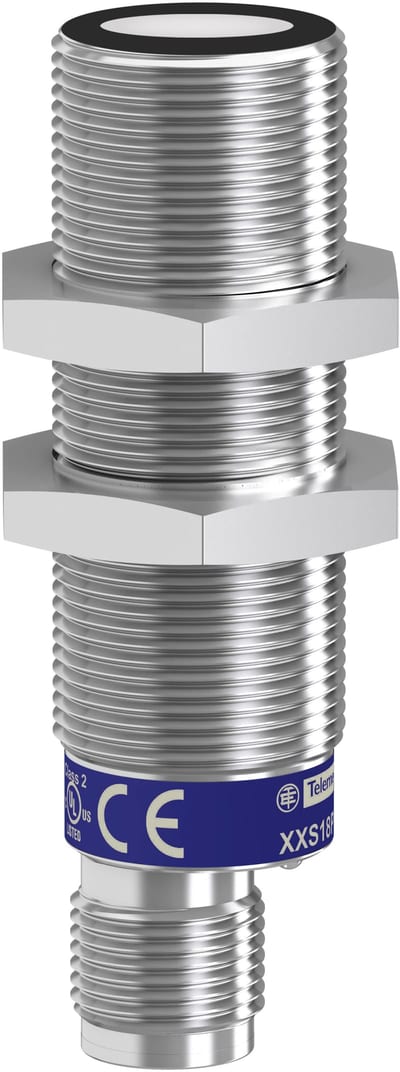

Telemecanique XXS18B1PM12 Ultrasonic Sensor, M18, Sn 1 m, PNP, M12 connector
Telemecanique
Telemecanique XUB9BPAWM12 Photoelectric Sensor, Polarised Reflex, Metal, PNP, NO, 90° Head, M12 connector
Telemecanique
Telemecanique OsiSense XS8C2A1NCM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 20 mm, NPN, NO or NC, M12 connector (4-Pin)
Telemecanique

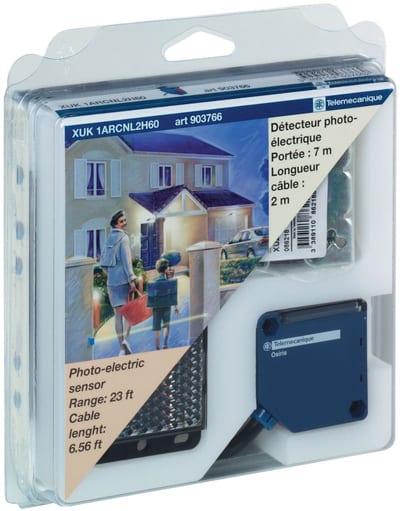

Telemecanique XUK1ARCNL2H60 Photoelectric Sensor, Retroreflective, AC/DC supply, relay NO/NC, 2 m cable
Telemecanique

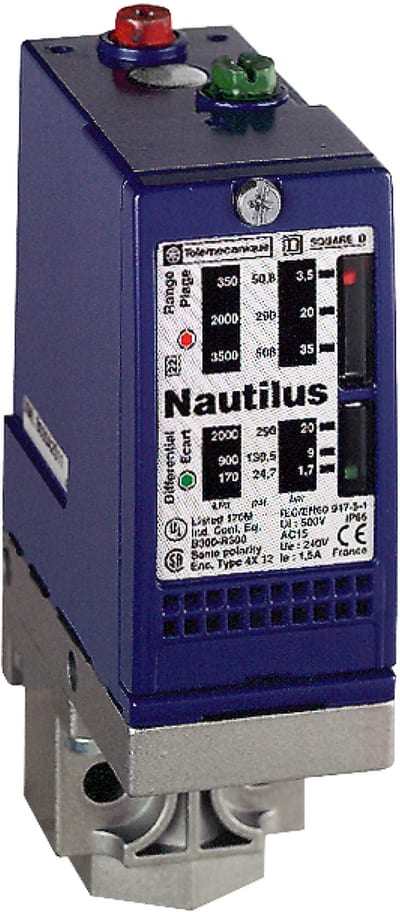

Telemecanique XMLB020A2S12 Pressure Switch, 1.3–20 bar
Telemecanique

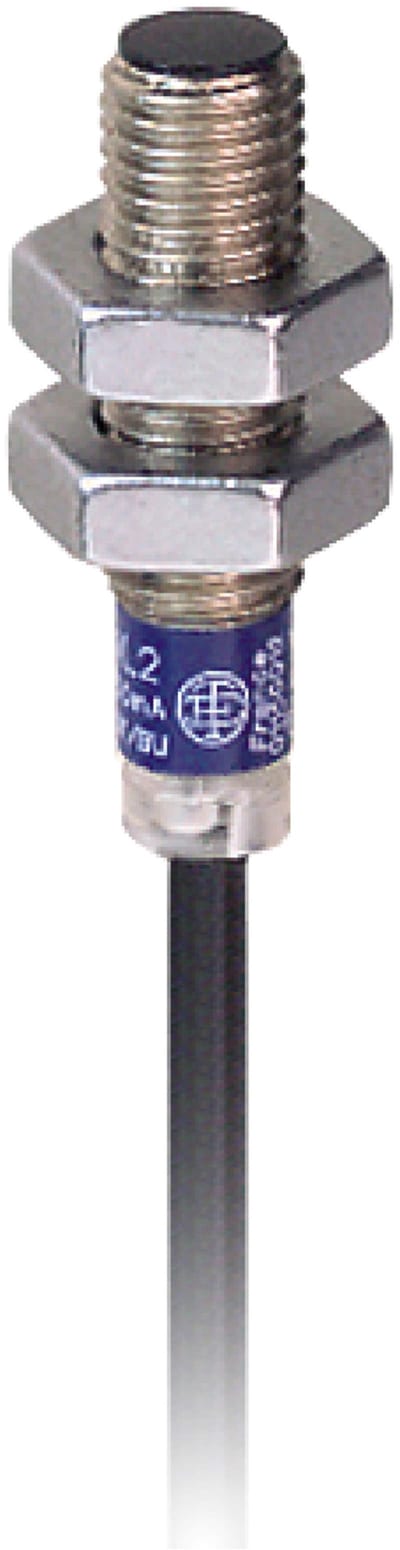

Telemecanique OsiSense XS608B1NAL2 Inductive Proximity Sensor — M8 barrel, Sn 2.5 mm, NPN, NO, pre-wired cable
