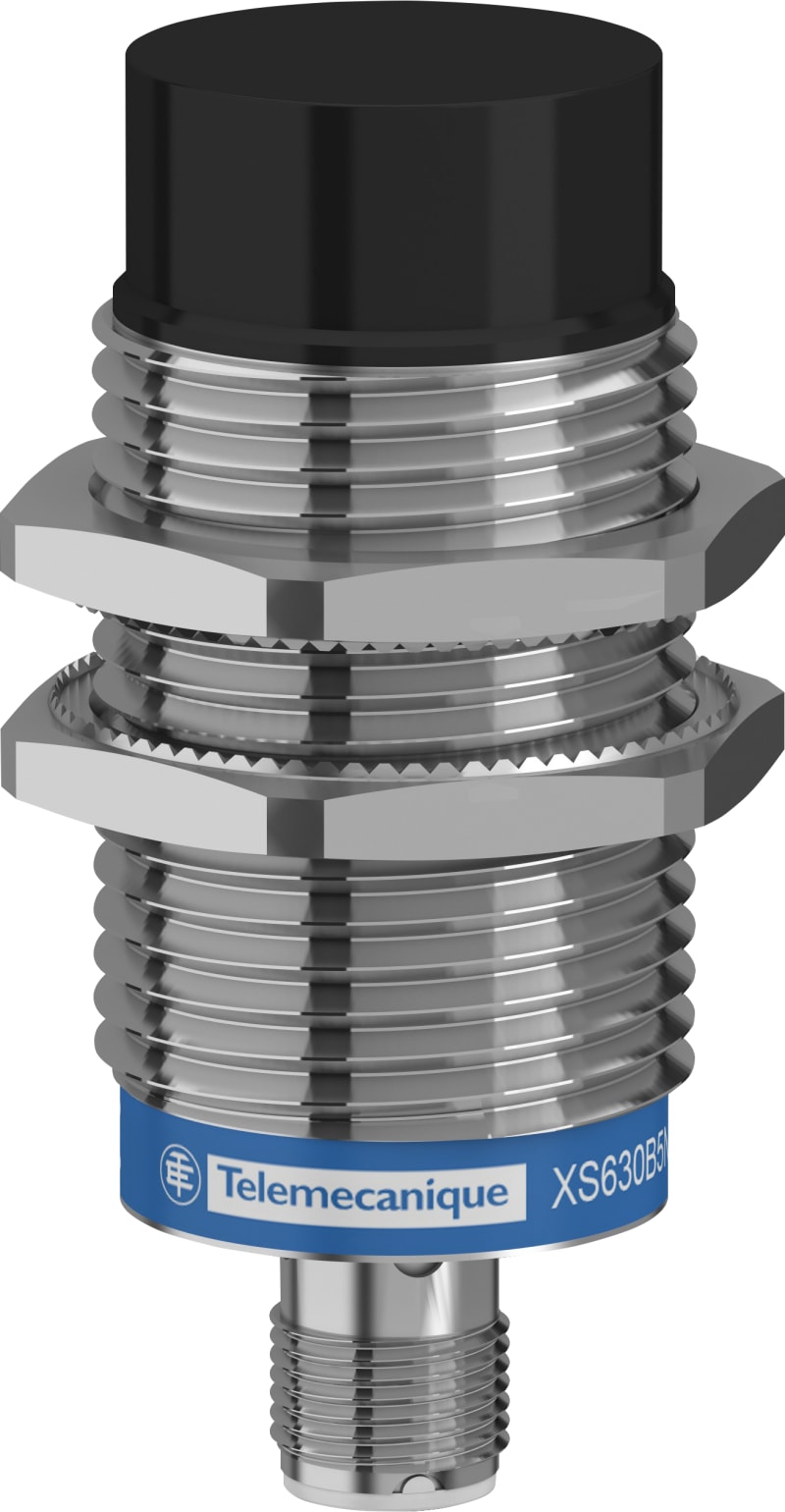

Telemecanique OsiSense XS630B5PBM12 Inductive Proximity Sensor — M30 barrel, Sn 30 mm, PNP, NC, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS630B5PBM12 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 30 mm and a non-flush (unshielded) sensing face. It provides a PNP (3-wire DC) output, switching NC (normally closed), via M12 connector (4-pin). Rated supply 24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS630B5PBM12
- EAN / GTIN
- 3666916011560
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- non-flush (unshielded)
- Nominal sensing distance Sn
- 30 mm
- Output
- PNP (3-wire DC)
- Switching function
- NC (normally closed)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 11 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916011560
