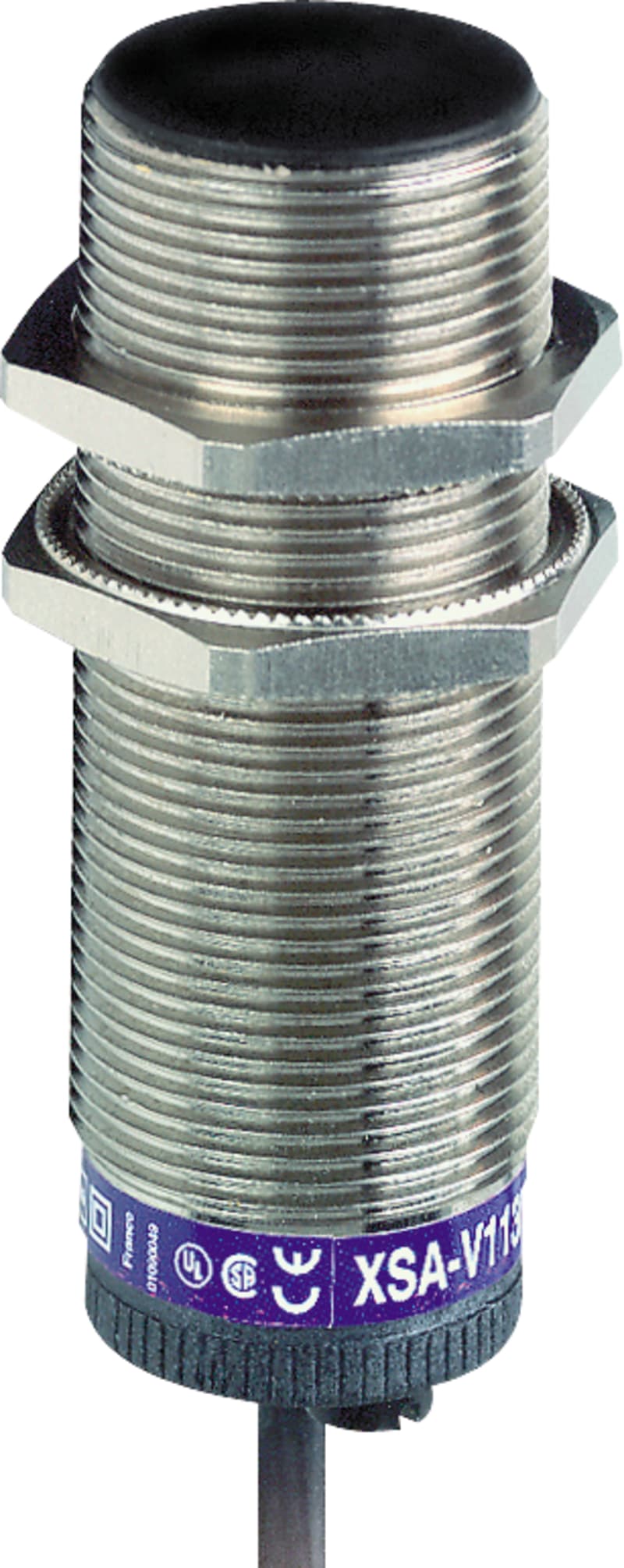

Telemecanique XSAV11373TF Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XSAV11373TF inductive rotation monitor (under-speed detector), M30 body, setting range 6–150 pulses/min, 3-wire, screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV11373TF
- EAN / GTIN
- 3666916009239
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Height of sensor
- 30 mm
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of electric connection
- Screw connection
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Special construction
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- AC/DC
- Switching frequency
- 10 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009239
- SAP 1000341671
- Code 81106434
Product Documentation
More from Telemecanique
Telemecanique
Schneider Electric TeSys GV7 - clip-on connector - up to 220 A - 1.5...185 MM2 GV7AC022
Telemecanique
Telemecanique XMLR010G1P26 Pressure Sensor with Display, 0–10 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMLR025G1P26 Pressure Sensor with Display, 0–25 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XUSL4E4BB091NS2 Safety Light Grid Type 4, Body Detection, 4 Beams, 910 mm
Telemecanique

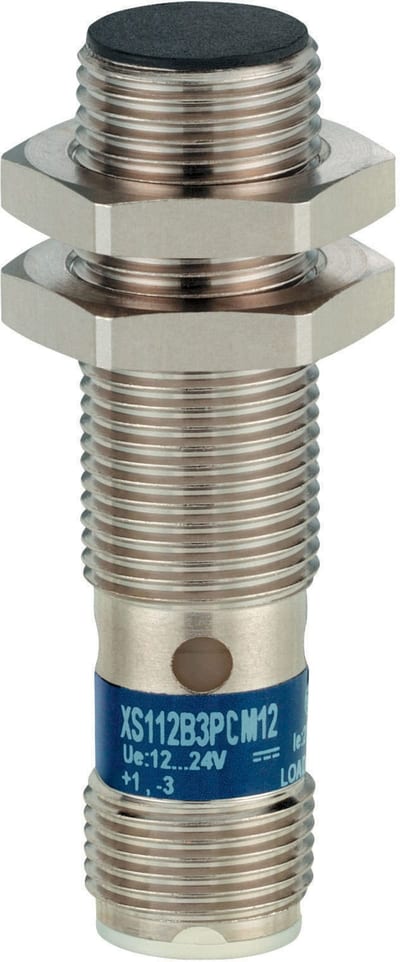

Telemecanique OsiSense XS112B3PCM12 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique

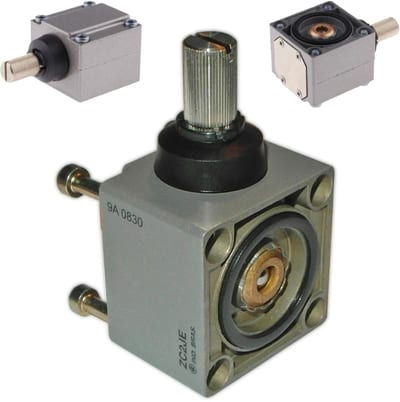

Telemecanique ZC2JE05 Limit Switch Operating Head, Rotating axis
Telemecanique

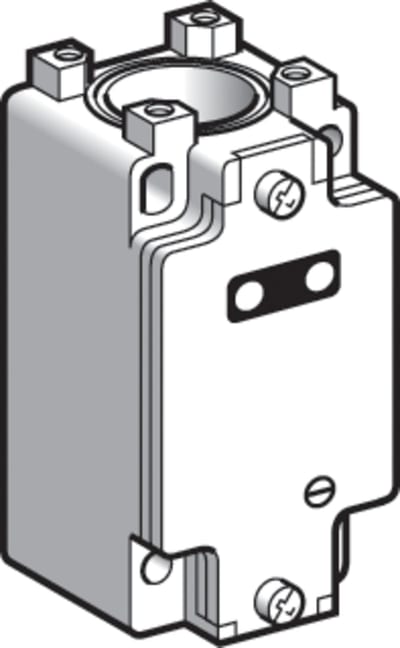

Telemecanique ZCKJ120 Limit Switch Body for ZCK Limit Switches
Telemecanique

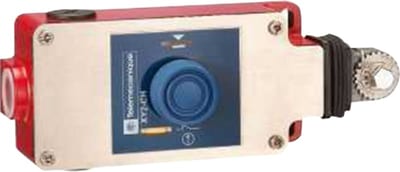

Telemecanique XY2CH14290H29 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, M20 entry
