Selector switch 2 POS Fixed(90 GR.)
Pricing
Request a quote
We reply within 24 hours
Product Description

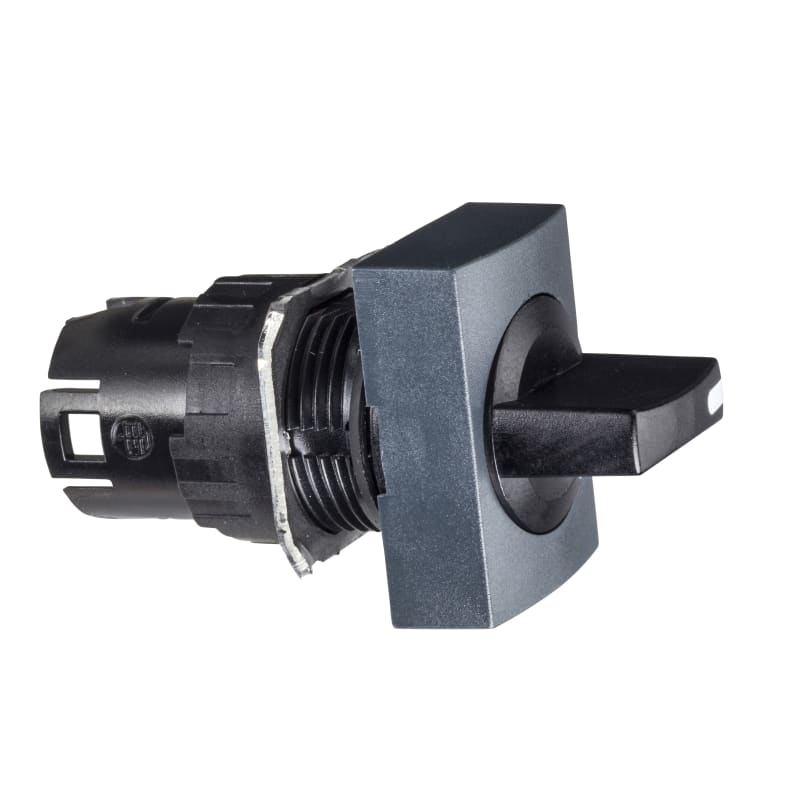

Telemecanique ZB6DD28 Selector switch 2 pos fixed 90 degrees angle.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DD28
- EAN / GTIN
- 3389110070859
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for selector switch
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- stay put
- Operator profile
- Black standard handle
- Operator position information
- 2 positions 90°
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 43 mm
- Product weight
- 0.018 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; JIS C 852; IEC 60947-5-5; UL 508; JIS C8201-5-1; JIS C8201-1
- Product certifications
- CCC; CSA; UL; GOST
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Number of switch positions
- 2
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Type of control element
- Short rotary handle
- Colour control element
- Black
- Switching function latching
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110070859
- SAP 1000341650
- Code 8976215
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP1340L10 Sensor Cable, M12 female angled, 3-pin, 10 m
Telemecanique

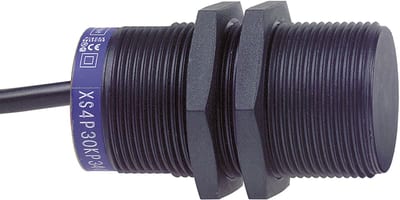

Telemecanique XS4P30MA230 Inductive Proximity Sensor, M30, 2 m cable
Telemecanique
Telemecanique XMLR001G1P75 Pressure Sensor with Display, 0–1 bar, 0–10 V + 1× PNP
Telemecanique
Telemecanique XZCR1512041C5 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XZCP1340L5 Sensor Cable, M12 female angled, 3-pin, 5 m
Telemecanique

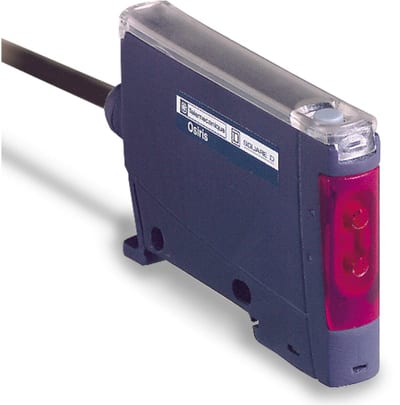

Telemecanique XUDA2PSMM8 Fibre-Optic Sensor Amplifier, PNP, NO/NC, M8 connector
Telemecanique
Telemecanique XXS30B4PM12 Ultrasonic Sensor, M30, Sn 4 m, PNP, M12 connector
Telemecanique

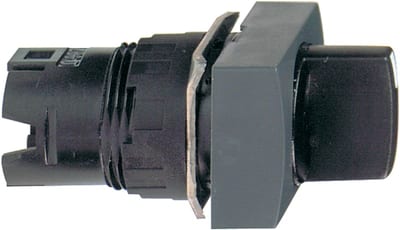

Selector switch 3 POS Return FROM H AND V (ZB6DD25)
