Telemecanique XUSL4E30H091N Safety Light Curtain Type 4, Hand Detection (30 mm), 910 mm Height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E30H091N Type 4 safety light curtain, hand detection with 30 mm resolution, protected height 910 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E30H091N
- EAN / GTIN
- 3666916027950
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 963 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 12.5 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 910 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027950
- SAP 1000652064
- Code 8458419
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS8D1A1PAM12 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Photoelectric Sensor TOF 1Q PNP/NPN
XUK8TAKSMM12
Telemecanique
PHOTOCELL, BGA 1M, 24-240VACDC
XUX8ARCTT16
Telemecanique
Telemecanique XUSL4MA40H136N Type 4 Safety Light Grille with Integrated Muting, 1360 mm protected height
Telemecanique
Mounting bracket (XUZA41)
Telemecanique

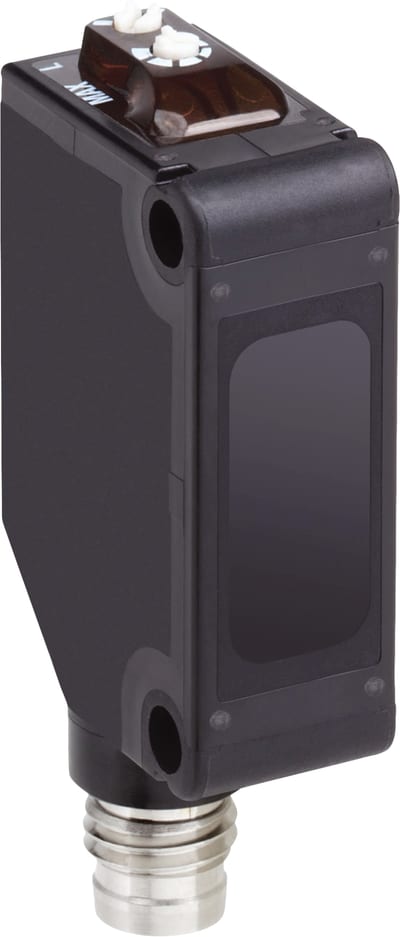

Telemecanique XUMTAPCNM8 Photoelectric Sensor, Photoelectric, M8 connector
Telemecanique

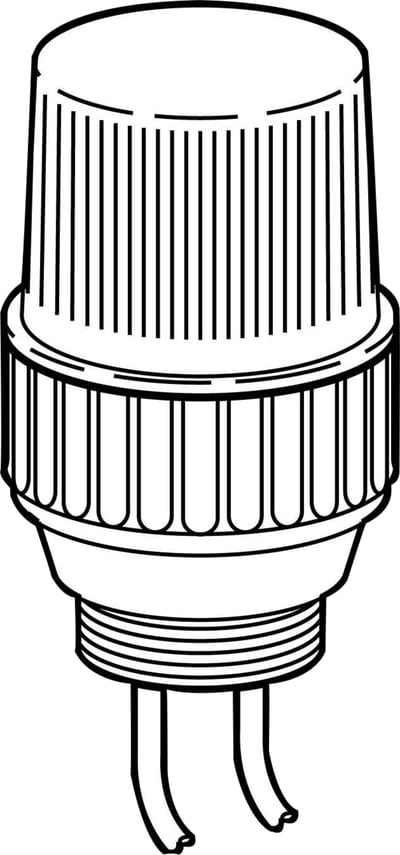

Telemecanique XY2CZ0024 Tension Indicator for XY2CH Rope Pull Switches
