Telemecanique XUSL2E4BB091N Safety Light Curtain Type 2
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL2E4BB091N type 2 safety light curtain.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL2E4BB091N
- EAN / GTIN
- 3666916028681
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Protective field height
- 910 mm
- Type (EN IEC 61496)
- Type 2
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 1
- Width sensor
- 29.4 mm
- Height of sensor
- 1077 mm
- Length of sensor
- 31 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 3.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 910 mm
- Type of safety according to IEC 61496-1
- 2
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028681
- SAP 1000651996
- Code 8210382
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4E3BB081LWH Safety Light Grid Type 4, Body Detection, 3 Beams, 810 mm
Telemecanique

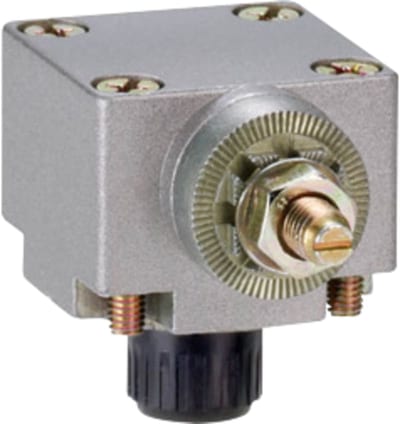

Telemecanique ZCKE05TK Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XMLP006GD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique

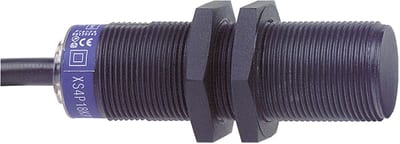

Telemecanique OsiSense XS4P18PA370 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique

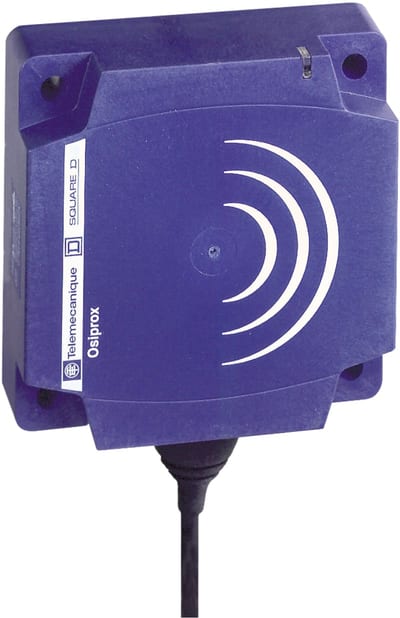

Telemecanique OsiSense XS7C1A1PAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 15 mm, PNP, NO, pre-wired cable
Telemecanique

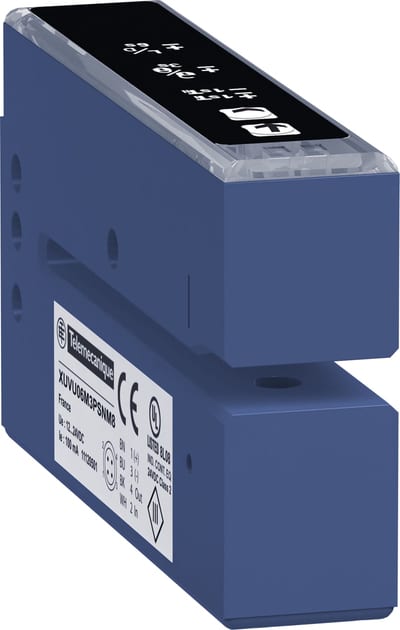

Telemecanique XUVU06M3PSNM8 Ultrasonic Fork Sensor, PNP, Teach-In, M8 Connector
Telemecanique

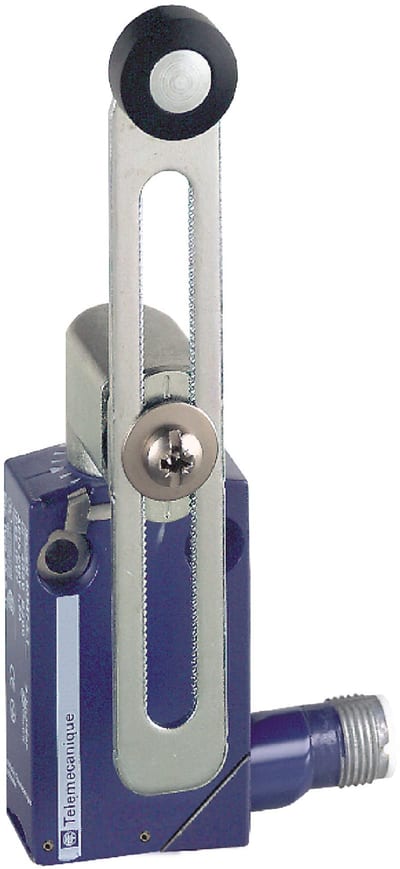

Telemecanique XCMD2145C12 Limit Switch, Adjustable-Length Roller Lever, Metal Body, M12 connector (5-pin)
