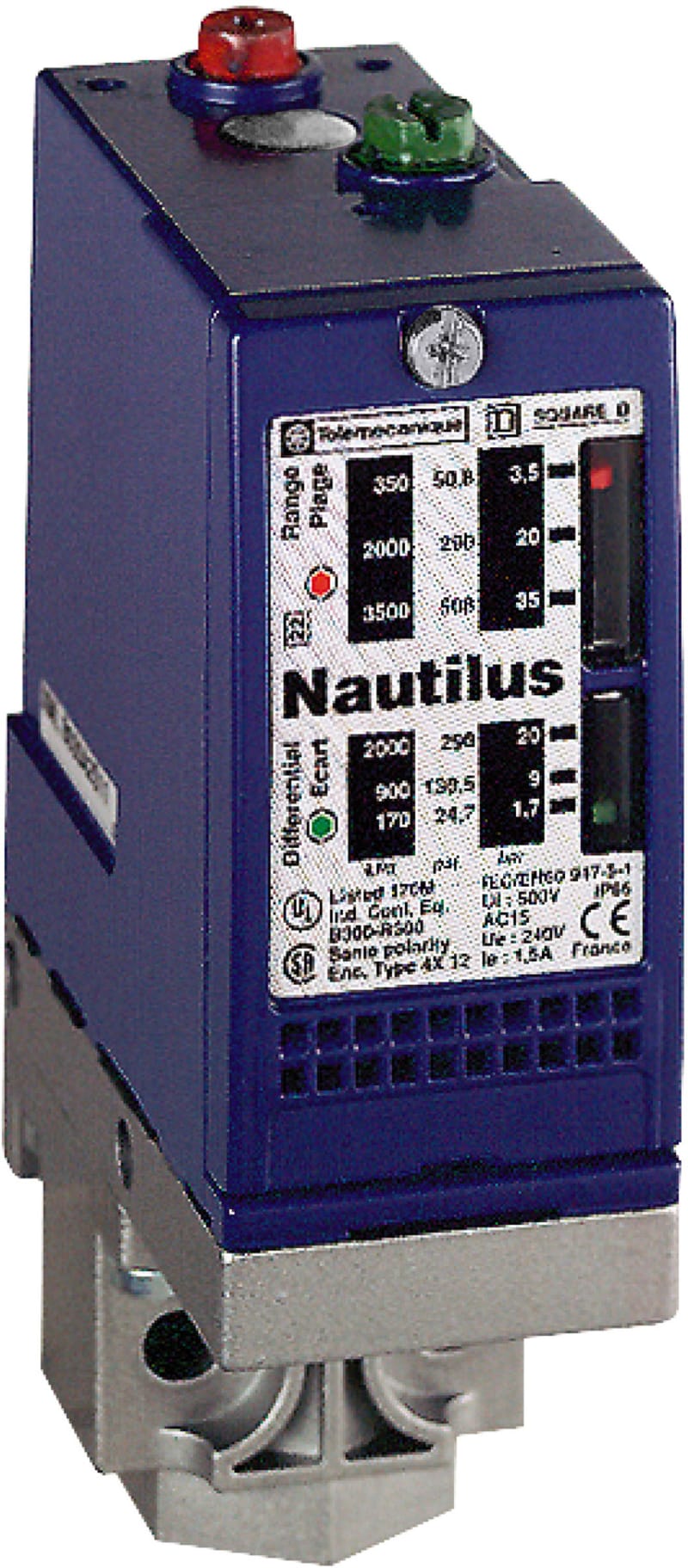

Telemecanique XMLB020A2S11 Pressure Switch, 1.3–20 bar, adjustable differential

Telemecanique XMLB020A2S11 OsiSense XMLB electromechanical pressure switch, adjustable range 1.3–20 bar, adjustable differential.

Manufacturer part number (MPN)

XMLB020A2S11 EAN / GTIN: 3666916025215 Sales unit: pcs Pressure: 1.3-20 bar Measuring range: 1.3–20 bar Width: 35 mm Height: 113 mm Depth: 75 mm With display: No With manual on/off switch: No Initial setting: 1300–20000 hPa End setting: 300–18400 hPa Max. operation pressure: 25000 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 0.3–18.4 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 90 bar Engaging pressure: 1.3–20 bar Electronic version: Yes Suitable as 2-point controller: Yes Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 45 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 9.4 bar Max. operating pressure: 20000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025215
• SAP 1000034034
• Code 8252480
