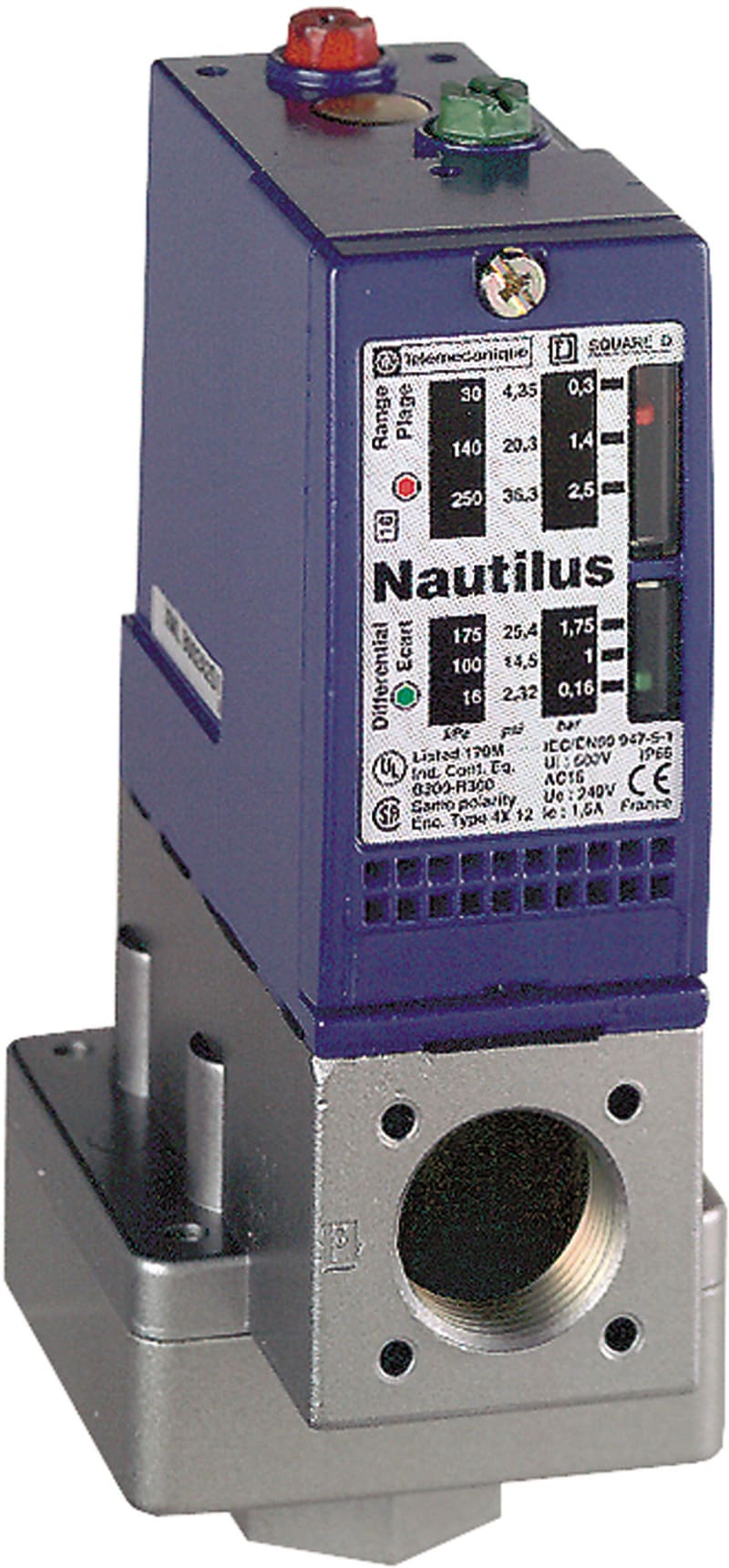

Telemecanique XMLB004A2S11 Pressure Switch, 0.25–4 bar, adjustable differential

Telemecanique XMLB004A2S11 OsiSense XMLB electromechanical pressure switch, adjustable range 0.25–4 bar, adjustable differential.

Manufacturer part number (MPN)

XMLB004A2S11 EAN / GTIN: 3666916025352 Sales unit: pcs Package quantity: 4 pcs Pressure: 0.25-4 bar Width: 35 mm Height: 158 mm Depth: 77.5 mm With display: No With manual on/off switch: No Initial setting: 250–4000 hPa End setting: 50–3750 hPa Max. operation pressure: 5000 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 0.05–3.75 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 18 bar Engaging pressure: 0.25–4 bar Electronic version: Yes Suitable as 2-point controller: Yes Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 9 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 2.15 bar Max. operating pressure: 4000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025352
• SAP 1000013393
• Code 8117660
