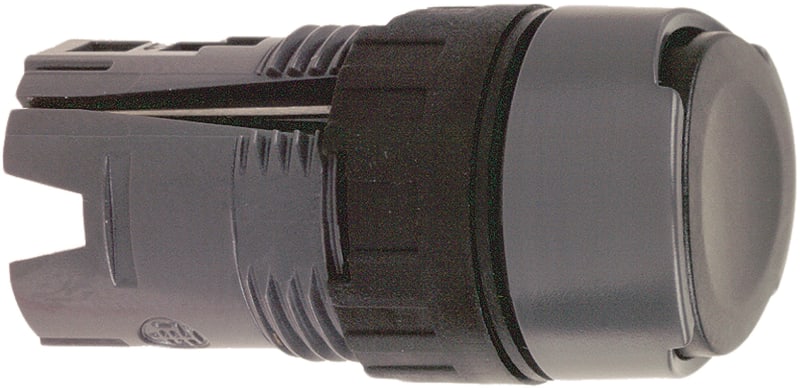

HEAD Round Black (ZB6AA2)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB6AA2 HEAD ROUND BLACK.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6AA2
- EAN / GTIN
- 3389110775396
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black flush, unmarked
- CAD overall width
- 18 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.016 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- JIS C8201-5-1; IEC 60947-1; UL 508; JIS C 852; IEC 60947-5-1; IEC 60947-5-5; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- CSA; UL; CCC; GOST
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour button
- Black
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Grey
- Degree of protection (IP), front side
- IP65
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110775396
- SAP 1000253983
- Code 81142639
