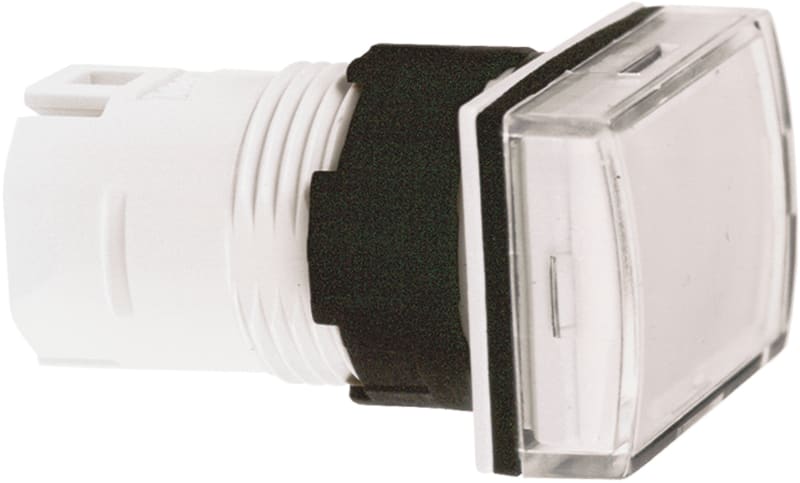

Telemecanique ZB6DV1 Pilot Light Head, White, for Harmony XB6
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique ZB6DV1 Pilot Light Head, White, for Harmony XB6 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 80 pcs; Range of product: Harmony XB6; Product or component type: Head for pilot light; Product compatibility: Integral LED; Device short name: ZB6.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DV1
- EAN / GTIN
- 3389110775648
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for pilot light
- Product compatibility
- Integral LED
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Cap/operator or lens colour
- White
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.015 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- IEC 60947-5-5; JIS C 852; UL 508; IEC 60947-1; CSA C22.2 No 14; JIS C 4520; IEC 60947-5-1
- Product certifications
- GOST; CCC; UL; CSA
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour lens
- White
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Width opening
- 24 mm
- Height opening
- 18 mm
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 3389110775648
- SAP 1000256891
- Code 8134770
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP2737L1 Sensor Cable, M8 male straight, 3-pin, 1 m
Telemecanique
Telemecanique ZCY71 Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique XUB0SPSNL2 Multimode Photoelectric Sensor, Stainless Steel, PNP, programmable, 2 m cable
Telemecanique
Telemecanique XUSL4MA30H031N Type 4 Safety Light Grille with Integrated Muting, 310 mm protected height
Telemecanique
Telemecanique ZCKY11 Actuator Lever for ZCK Limit Switches
Telemecanique
Telemecanique XZCPA0941L10 Sensor Cable, M8 female straight, 4-pin, PVC, 10 m
Telemecanique
Telemecanique XMLP600BD71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XCMD21F2L2 Limit Switch, Plunger, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB6DV1?
- ZB6DV1 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB6DV1.
- What is the HS code for ZB6DV1?
- The customs tariff (HS) code for ZB6DV1 is 8531.90.
- Who manufactures ZB6DV1?
- ZB6DV1 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB6DV1?
- Yes — the ZB6DV1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB6DV1?
- The minimum order quantity is 1.
- Is ZB6DV1 available?
- Yes — ZB6DV1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
