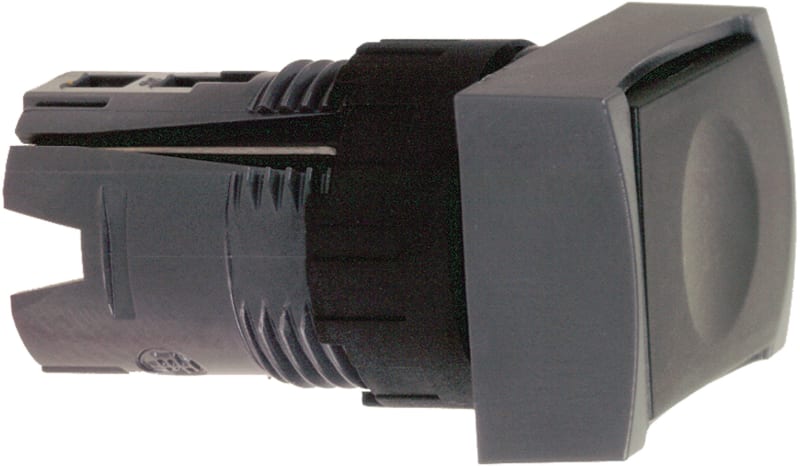

Telemecanique ZB6DA2 Pushbutton Head, Black, for Harmony XB6
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique ZB6DA2 Pushbutton Head, Black, for Harmony XB6 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony XB6; Product or component type: Head for non-illuminated push-button; Device short name: ZB6; Bezel material: Plastic.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DA2
- EAN / GTIN
- 3389110775495
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- spring return
- Operator profile
- Black flush, unmarked
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.016 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- IEC 60947-5-5; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-5-1; UL 508; JIS C 852; IEC 60947-1; JIS C8201-1
- Product certifications
- CSA; CCC; GOST; UL
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour button
- Black
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Height opening
- 6 mm
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110775495
- SAP 1000254070
- Code 8115057
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP025BD71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLB004A2C11 Pressure Switch, 0.25–4 bar
Telemecanique
Telemecanique XUB4BPAWM12 Photoelectric Sensor, Diffuse, Metal, PNP, NO, 90° Head, M12 connector
Telemecanique
Telemecanique OsiSense XS618B1MAU20 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire AC/DC, NO
Telemecanique
Telemecanique XUB2BKSNM12T Photoelectric Emitter M18, Metal
Telemecanique
Telemecanique XS4P18AB120 Inductive Proximity Sensor
Telemecanique
Telemecanique OsiSense XS9C2A2A2M12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 25 mm, 4–20 mA analog, M12 connector (4-Pin)
Telemecanique
Telemecanique XCKP21H0P16 Limit Switch, Metal Plunger, M16 entry
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB6DA2?
- ZB6DA2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB6DA2.
- What is the HS code for ZB6DA2?
- The customs tariff (HS) code for ZB6DA2 is 8538.90.
- Who manufactures ZB6DA2?
- ZB6DA2 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB6DA2?
- Yes — the ZB6DA2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB6DA2?
- The minimum order quantity is 1.
- Is ZB6DA2 available?
- Yes — ZB6DA2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
