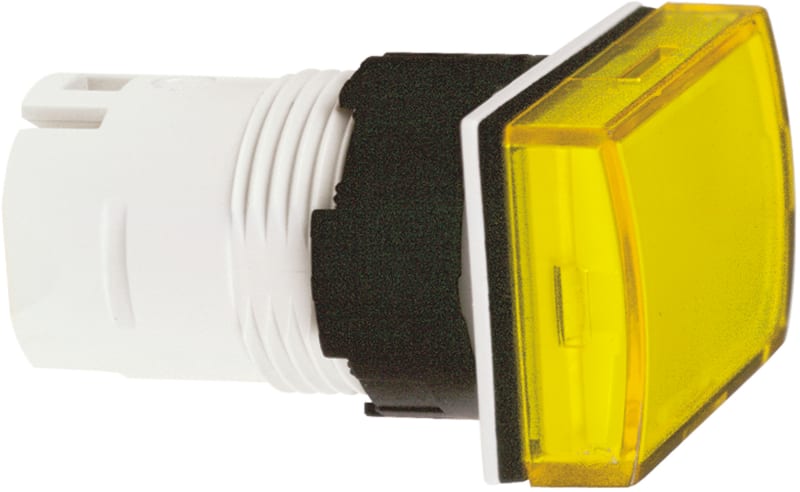

Telemecanique ZB6DV5 Pilot Light Head, Yellow, for Harmony XB6
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique ZB6DV5 Pilot Light Head, Yellow, for Harmony XB6 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 80 pcs; Range of product: Harmony XB6; Product or component type: Head for pilot light; Product compatibility: Integral LED; Device short name: ZB6.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DV5
- EAN / GTIN
- 3389110775679
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for pilot light
- Product compatibility
- Integral LED
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Cap/operator or lens colour
- Yellow
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.015 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-5; JIS C 4520; UL 508; JIS C 852
- Product certifications
- CCC; GOST; UL; CSA
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour lens
- Yellow
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Width opening
- 24 mm
- Height opening
- 18 mm
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Degree of protection (NEMA)
- 4X, 13
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110775679
- SAP 1000256894
- Code 8134794
Product Documentation
