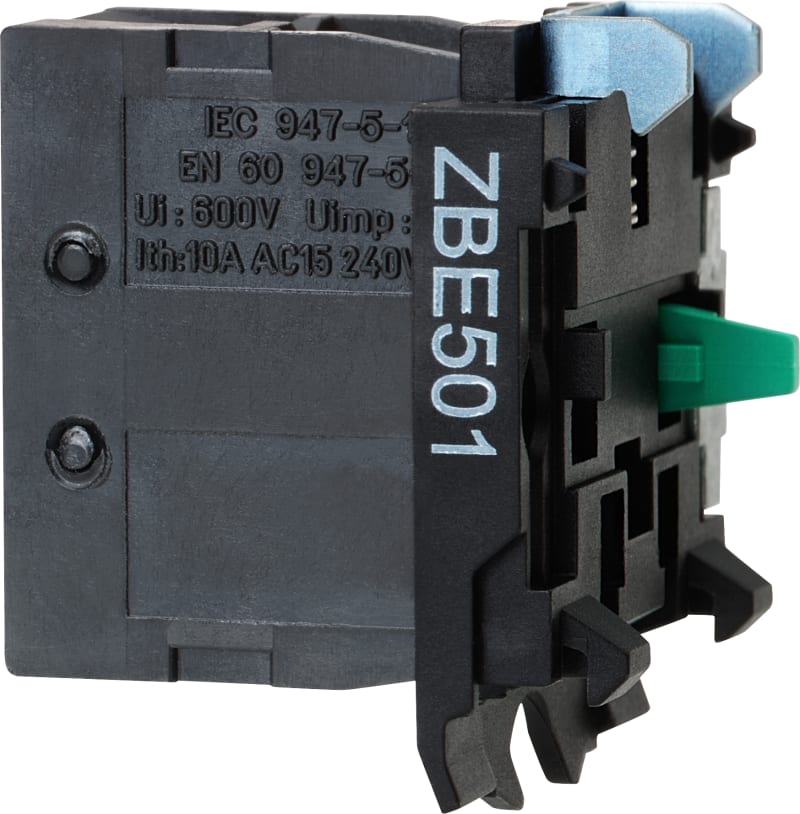

CONTACT ELEMENTENT 1 NO, Ith=10 A

Telemecanique ZBE501 Connector element 1 no, Ith=10 A.

Manufacturer part number (MPN)

ZBE501

EAN / GTIN

3389119042215

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

1 NO

Range of product

Harmony XB5; Harmony XB4

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

1

IP degree of protection

IP20 conforming to IEC 60529

Contact operation

Slow-break

Contact block type

Single

Contacts usage

High power switching contacts

Connections - terminals

Screw clamp terminals, = 1 x 0.5 mm² without cable end

Product weight

0.02 kg

Contacts type and composition

1 NO

Positive opening

Without

Mechanical durability

10000000 cycles

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

1.1 A at 125 V, DC-13, P300 conforming to IEC 60947-5-1

Mounting of block

Front mounting

Electrical composition code

C15 (quantity <= 1)

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

80

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
