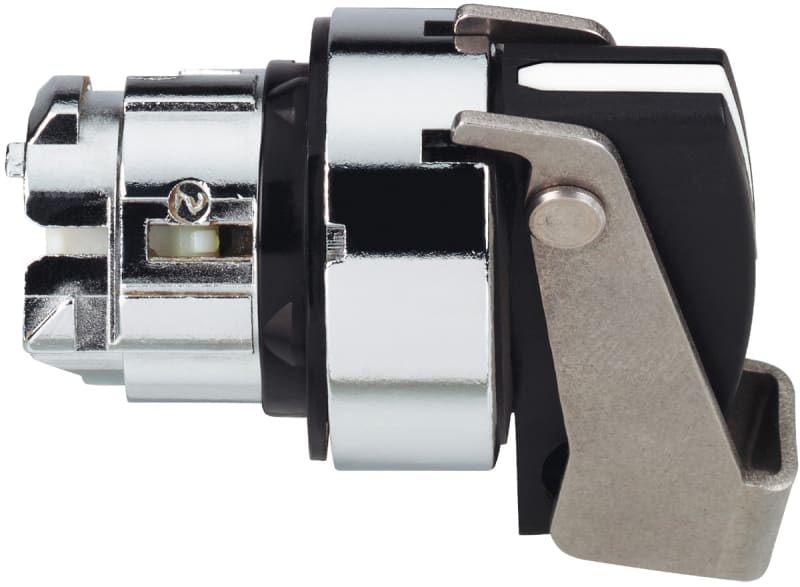

Telemecanique ZB4BJ397 Selector Switch Head, 3 Positions, Padlockable

The Telemecanique ZB4BJ397 is a 22 mm selector-switch operator head from the Harmony XB4 range, with a long black handle providing three stay-put positions at +/- 45 degrees. Each position (left, right or centre) can be padlocked to lock the switch in that state, giving lockout security for machine mode selection. The chromed-metal bezel offers IP67 protection and 1,000,000 cycles of mechanical durability for demanding industrial control stations.

Manufacturer part number (MPN)

ZB4BJ397

EAN / GTIN

3389110173642

Sales unit

pcs

Package quantity

75 pcs

Range of product

Harmony XB4

Product or component type

Head for selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black long handle

Operator additional information

Padlockable

Operator position information

3 positions +/- 45°

Locking position

On the left, right or center

CAD overall width

29 mm

CAD overall height

38 mm

CAD overall depth

50 mm

Product weight

0.048 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP67 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

JIS C8201-5-1; UL 508; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-1; IEC 60947-5-5; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP67/IP69K

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Long rotary handle

Colour control element

Black

Switching function latching

Yes

HS Code

8538.90
