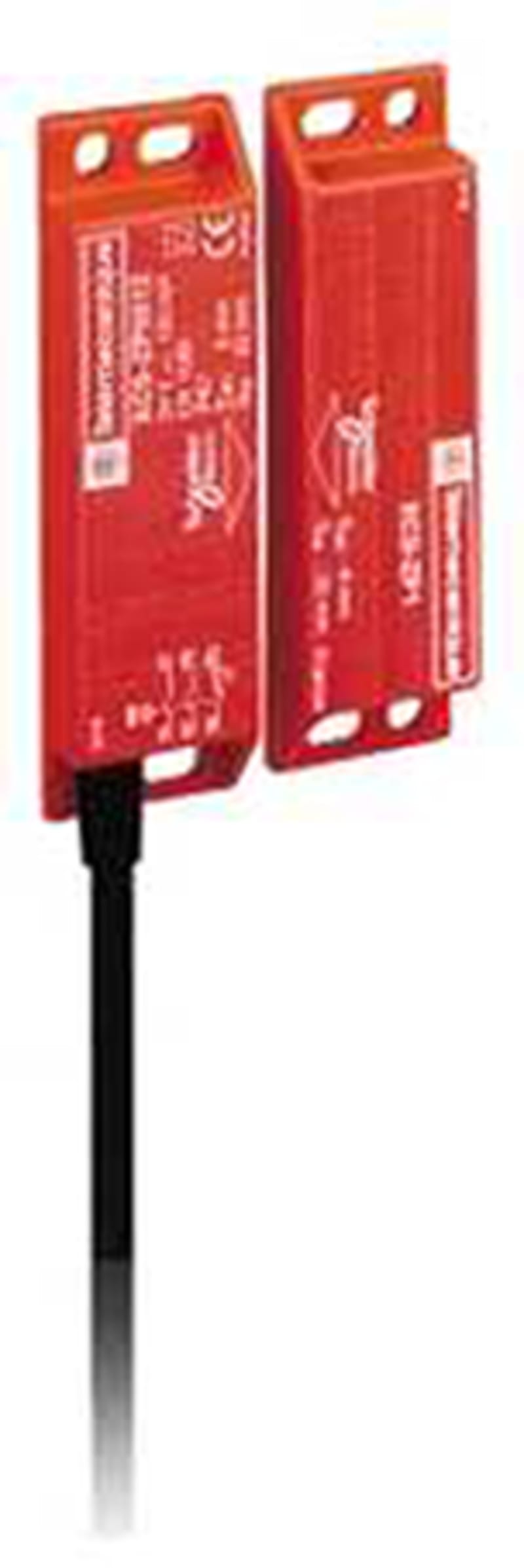

Telemecanique XCSDMP790L01M12 Magnetic Safety Switch, 01 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSDMP790L01M12 magnetic safety interlock switch for guard-door monitoring, 01 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMP790L01M12
- EAN / GTIN
- 3666916059555
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- IP rating
- IP66
- Contact configuration
- 2 NC
- Type of actuation
- Magnet
- Type of electric connection
- Connector M12
- Type of switching output
- Relay contact
- Width sensor
- 25 mm
- Height of sensor
- 88 mm
- Length of sensor
- 13 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Protected switch distance OFF
- 20 mm
- Protected switch distance ON
- 8 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Mechanical mounting condition for sensor
- Not flat
- Min. output current
- 100 mA
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 20 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916059555
- SAP 1000341544
- Code 8976052
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUK9ANBNM12 Photoelectric Sensor, Polarised Reflex, Plastic, NPN, NC, M12 connector
Telemecanique
Telemecanique XUSZWPE060 Protective Cover for 600 mm XUS Light Curtains
Telemecanique
Telemecanique XUYAFPCO966S Photoelectric Sensor, M8 connector
Telemecanique
Telemecanique XMLR010G1N76 Pressure Sensor with Display, 0–10 bar, 0–10 V + 1× NPN
Telemecanique
Telemecanique XCMD2124M12 Limit Switch, Spring-Return Lever Plunger, Metal Body, M12 connector
Telemecanique
Telemecanique OsiSense XS212B4PBM12 Inductive Proximity Sensor — M12 barrel, Sn 8 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XZCP57V12L5 Sensor Cable, M12 female straight, 2-pin, PUR, 5 m
Telemecanique
Telemecanique XCKJ167H7 Limit Switch, Metal Roller Plunger, 1/2" NPT entry
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSDMP790L01M12?
- XCSDMP790L01M12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSDMP790L01M12.
- What is the HS code for XCSDMP790L01M12?
- The customs tariff (HS) code for XCSDMP790L01M12 is 8536.90.
- Who manufactures XCSDMP790L01M12?
- XCSDMP790L01M12 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSDMP790L01M12?
- Yes — the XCSDMP790L01M12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSDMP790L01M12?
- The minimum order quantity is 1.
- Is XCSDMP790L01M12 available?
- Yes — XCSDMP790L01M12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
