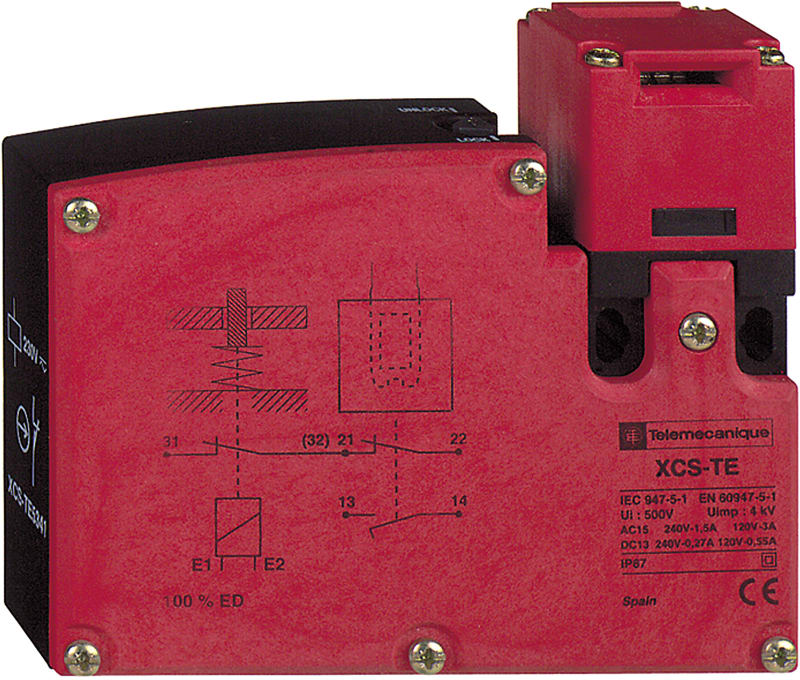

Telemecanique XCSTE5311 Safety Limit Switch with Magnetic Guard Locking

Telemecanique XCSTE5311 is a safety limit switch with magnetic guard locking operating on the quiescent-current principle. The plastic housing carries one normally open and one normally closed slow-action contact, rated 1.5 A at AC-15 230 V and 0.27 A at DC-13 230 V. Guard locking force is 500 N with 24 V AC/DC coil supply, and the enclosure is rated IP67K for -25 to 60 degrees C service. Cable entry uses PG glands and status indication is fitted. Country of origin is France.

Manufacturer part number (MPN)

XCSTE5311

EAN / GTIN

3666916046999

HS code

8536.90

Sales unit

pcs

Type of locking

Quiescent current principle

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

Yes

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

Cable entry PG

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

24 V

Rated control supply voltage magnet drive AC 60 Hz

24 V

Rated control supply voltage magnet drive DC

24 V

Rated operation current Ie at AC-15, 125 V

3 A

Rated operation current Ie at DC-13, 125 V

0.55 A

Width sensor

110 mm

With escape release

No

Height of sensor

94 mm

Length of sensor

33 mm

Ambient temperature during operating

-25–60 °C

Guard locking force

500 N

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

France

HS Code

8536.90

• EAN 3666916046999
• SAP 1000023980
• Code 8187505
