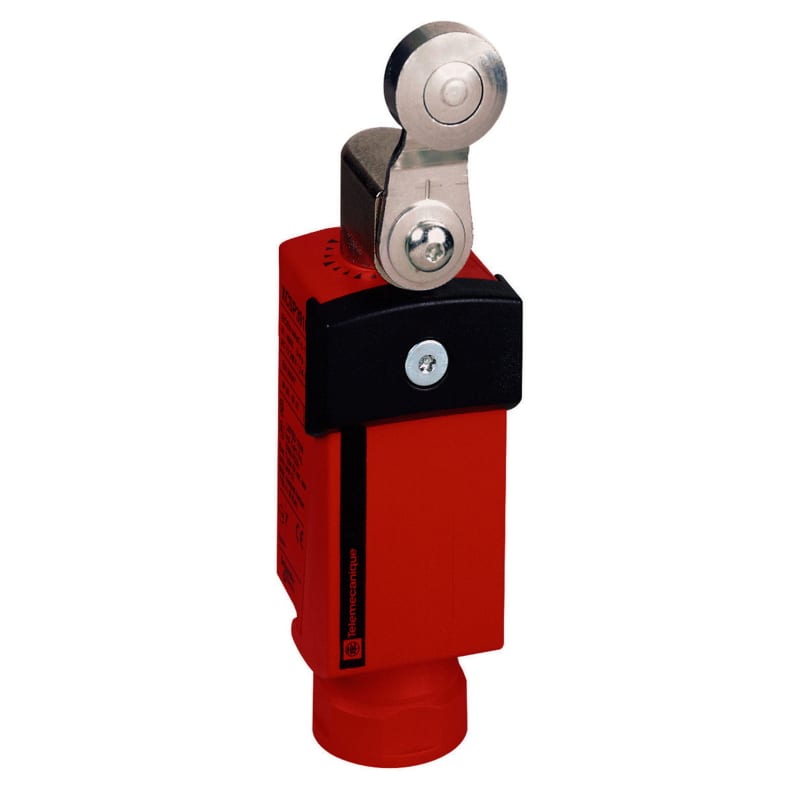

Telemecanique XCSP safety limit switch, plastic body, rotary lever with steel roller, 2 NC + 1 NO with positive opening, M20 x 1.5 cable entry, IP67K XCSP3919P20

Telemecanique XCSP3919P20 safety limit switch with a plastic body and an adjustable rotary lever carrying a steel roller, for machine guarding. It is the plastic-bodied counterpart of the metal XCSD3919P20. 2 NC + 1 NO contact block with positive opening on the NC contacts. One ISO M20 x 1.5 tapped cable entry. Protection IP67K.

Manufacturer part number (MPN)

XCSP3919P20

EAN / GTIN

3666916045343

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.1 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Forced opening

No

Type of control element

Roller lever

Type of interface

None

Output electronic

No

Width sensor

34 mm

Height of sensor

122 mm

Length of sensor

35 mm

Switching function latching

No

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

Country of origin

France

HS Code

8536.90

• EAN 3666916045343
• SAP 1200250098
• Code 82225060
