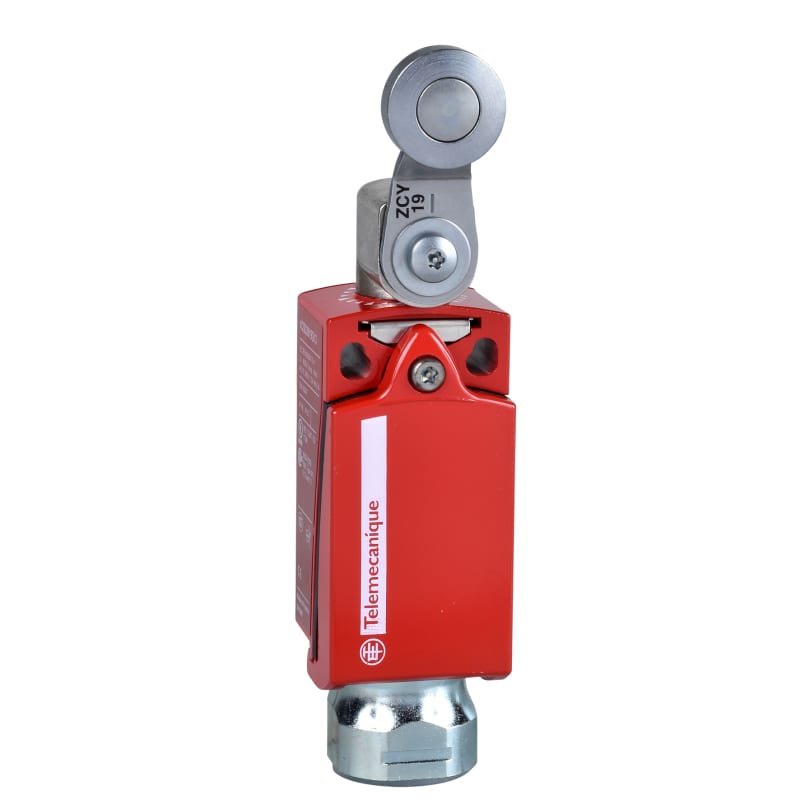

Telemecanique XCSD3719G13 Safety Limit Switch, 2 NC + 1 NO, PG13 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSD3719G13 safety limit switch with positive opening contacts, 2 NC + 1 NO contacts, PG13 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSD3719G13
- EAN / GTIN
- 3666916045602
- Sales unit
- pcs
- Contact configuration
- 2 NC + 1 NO
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Forced opening
- No
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 34 mm
- Height of sensor
- 122 mm
- Length of sensor
- 35 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916045602
- SAP 1200250084
- Code 82225099
Product Documentation
More from Telemecanique
Telemecanique

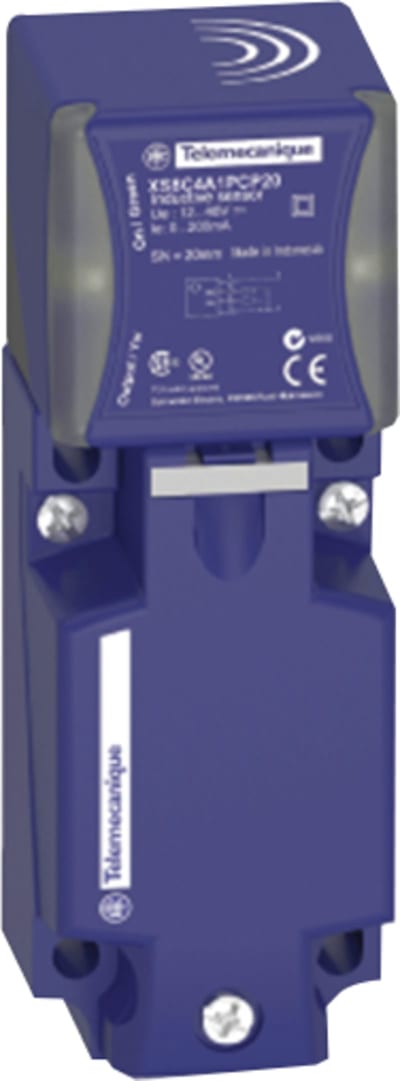

Telemecanique OsiSense XS8C4A4DPP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 40 mm, 2-Wire DC, NO or NC, screw terminals
Telemecanique
Telemecanique XZCR1111064D5 Sensor Cable, M12 to M12, 5 m
Telemecanique

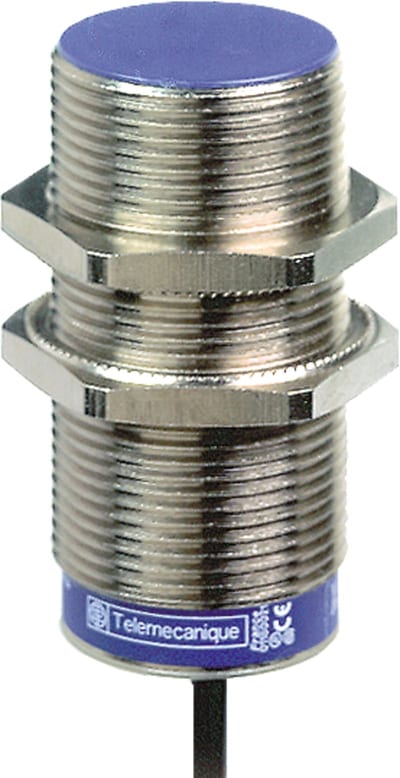

Telemecanique OsiSense XS630B1PBL10EX Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NC
Telemecanique
Telemecanique XZCE13P124M Bulkhead Feed-Through Connector, M12 Male, 4-pin
Telemecanique
Telemecanique XMLR040G1P75 Pressure Sensor with Display, 0–40 bar, 0–10 V + 1× PNP
Telemecanique

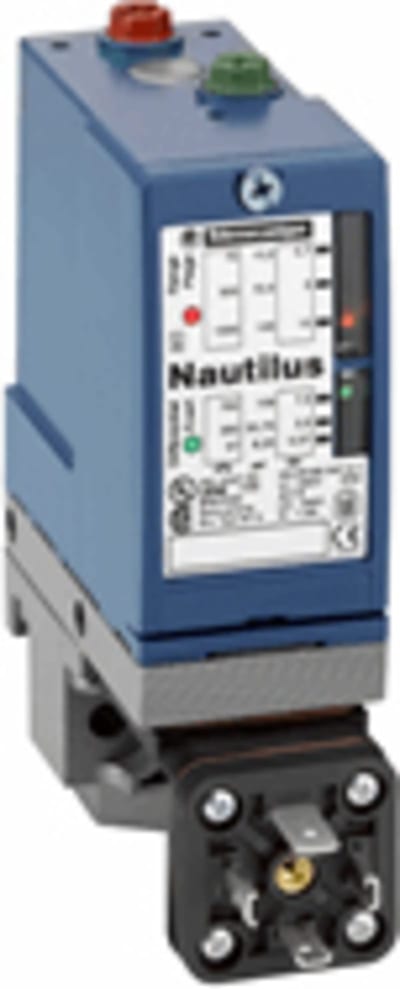

Telemecanique XMLB035A2C11 Pressure Switch, 5–35 bar
Telemecanique

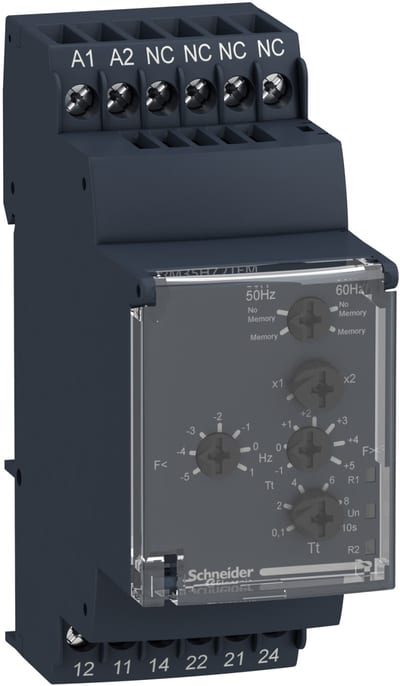

Schneider Electric frequency control relay RM35-HZ - range 40..70 Hz RM35HZ21FM
Telemecanique

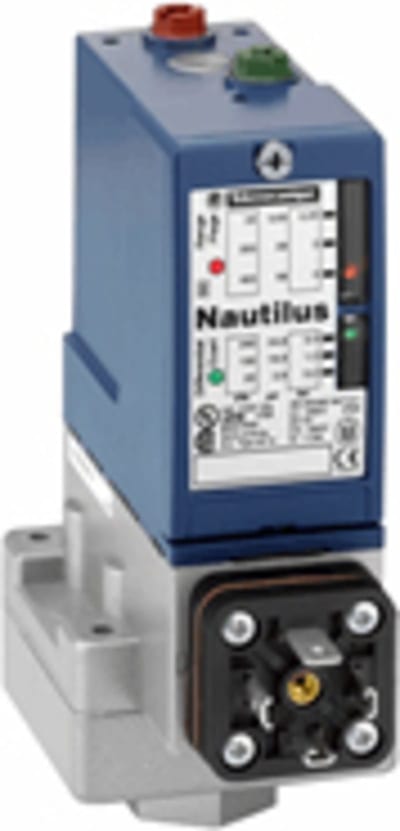

Telemecanique XMLBM02V2C11 Pressure Switch, 0–1 bar
