Telemecanique XZCC12FCP42B Field-Wireable Connector, M12, Female, Angled, 4-pin, Plastic
Pricing
Request a quote
We reply within 24 hours
Product Description

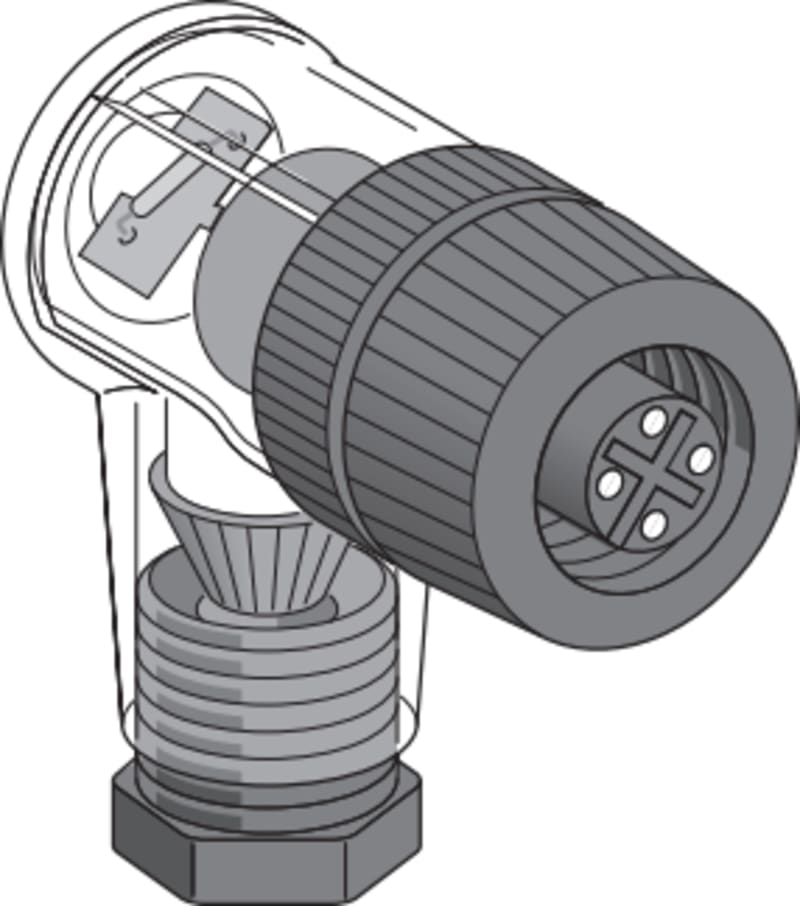

Telemecanique XZCC12FCP42B field-wireable (user-attachable) connector, M12 female angled, 4-pin, plastic body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC12FCP42B
- EAN / GTIN
- 3666916070055
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M12
- Contact type
- Pin
- Diameter connector
- 12 mm
- Thread size M
- 18
- Number of data contacts
- 4
- For cable outer diameter
- 7 mm
- Type of housing
- Angled
- Rated current In
- 3 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 30 V
- Connectable conductor cross section solid-core
- 0–75 mm²
- Connectable conductor cross section multi-wired
- 0–75 mm²
- Type of electric connection
- Screw connection
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3666916070055
- SAP 1000341485
- Code 8997771
