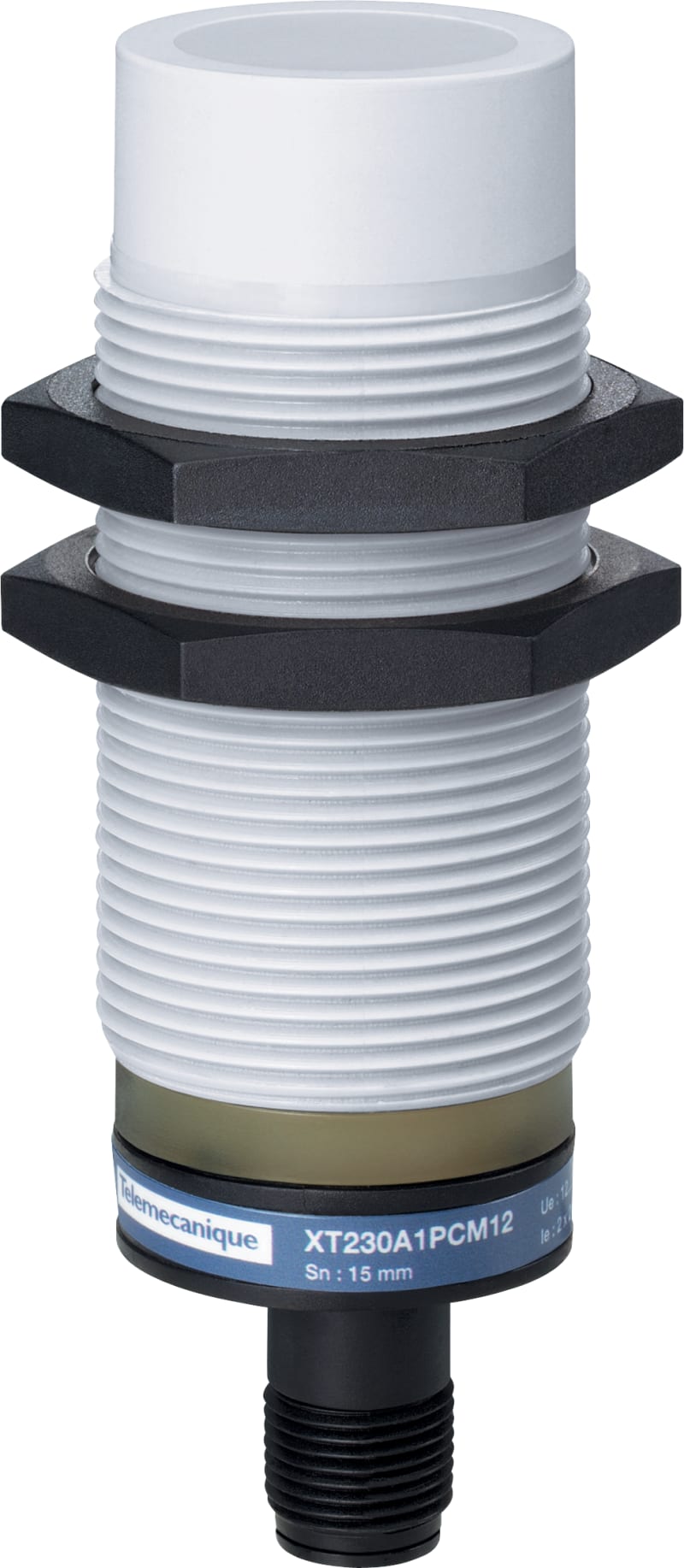

Telemecanique XT230A1PCM12 Capacitive Proximity Sensor Ø30 mm, PNP, complementary NO+NC, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XT230A1PCM12 capacitive proximity sensor, Ø30 mm body, 12-24 V DC, PNP complementary NO+NC output, sensing distance 15 mm, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XT230A1PCM12
- EAN / GTIN
- 3666916020081
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Voltage
- 12-24 V DC
- Length of sensor
- 74.5 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 15 mm
- Suitable for safety functions
- No
- Type of switch function
- Anticoincidence
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of actuation
- Metallic and non-metallic target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Supply voltage
- 12–24 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- Switching frequency
- 50 Hz
- With monitoring function downstream switching devices
- No
- With status indication
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916020081
- SAP 1000341481
- Code 8975921
