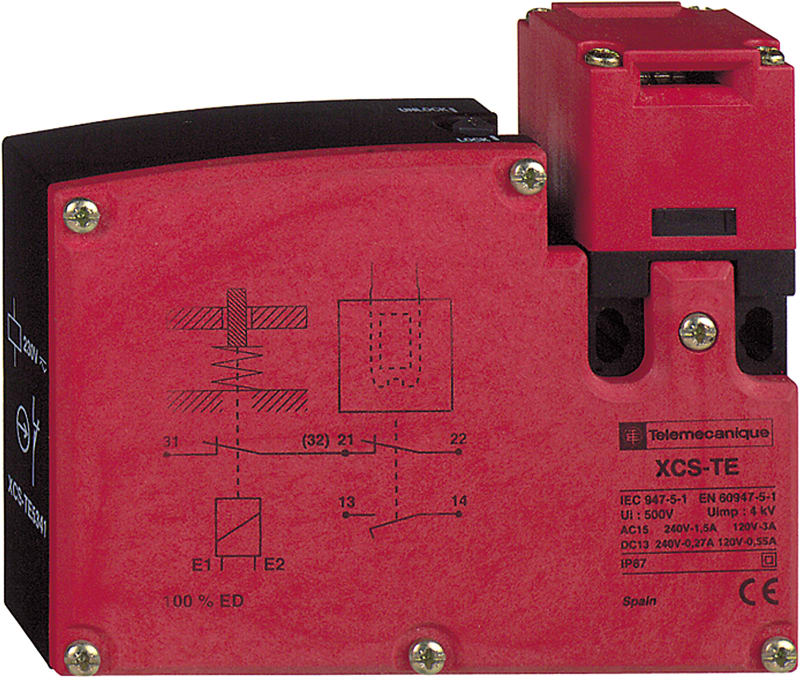

Telemecanique XCSTE5341 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSTE5341 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSTE5341
- EAN / GTIN
- 3666916046944
- Sales unit
- pcs
- Type of locking
- Quiescent current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 230 V
- Rated control supply voltage magnet drive AC 60 Hz
- 230 V
- Rated control supply voltage magnet drive DC
- 230 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 110 mm
- With escape release
- No
- Height of sensor
- 94 mm
- Length of sensor
- 33 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 500 N
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916046944
- SAP 1000074539
- Code 8565123
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKMR54D1 Limit Switch, Metal Cross Lever, Metal Body, PG cable entry
Telemecanique
Telemecanique OsiSense XS512B1PAM12 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XCKD2118P16 Limit Switch, Plastic Body, 1 NO + 1 NC, M16 entry
Telemecanique
Telemecanique ZCKM7H29 Limit Switch Body, Metal, NC+NC, Slow-break, M20 cable entry
Telemecanique
Mushroom Head Push/turn Yellow Ø40mm
ZB5AS55
Telemecanique
Telemecanique ZCY45 Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique

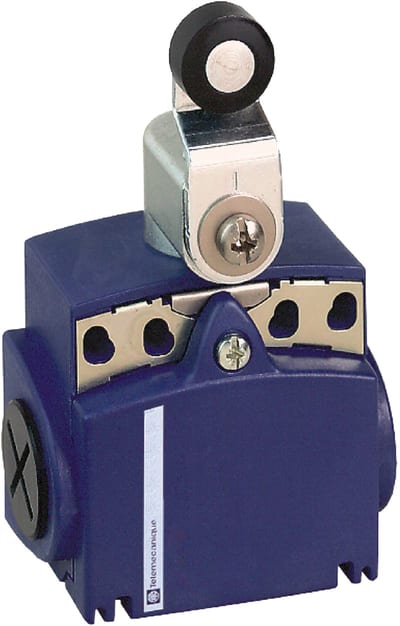

Telemecanique XCKT2118P16 Limit Switch, Plastic Body, 1 NO + 1 NC, M16 entry
Telemecanique

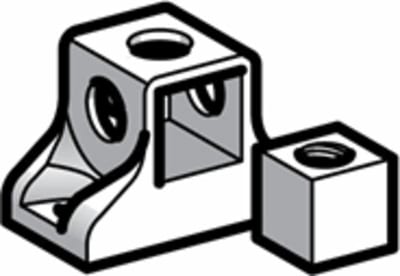

Mounting bracket F/12 MM Rod
