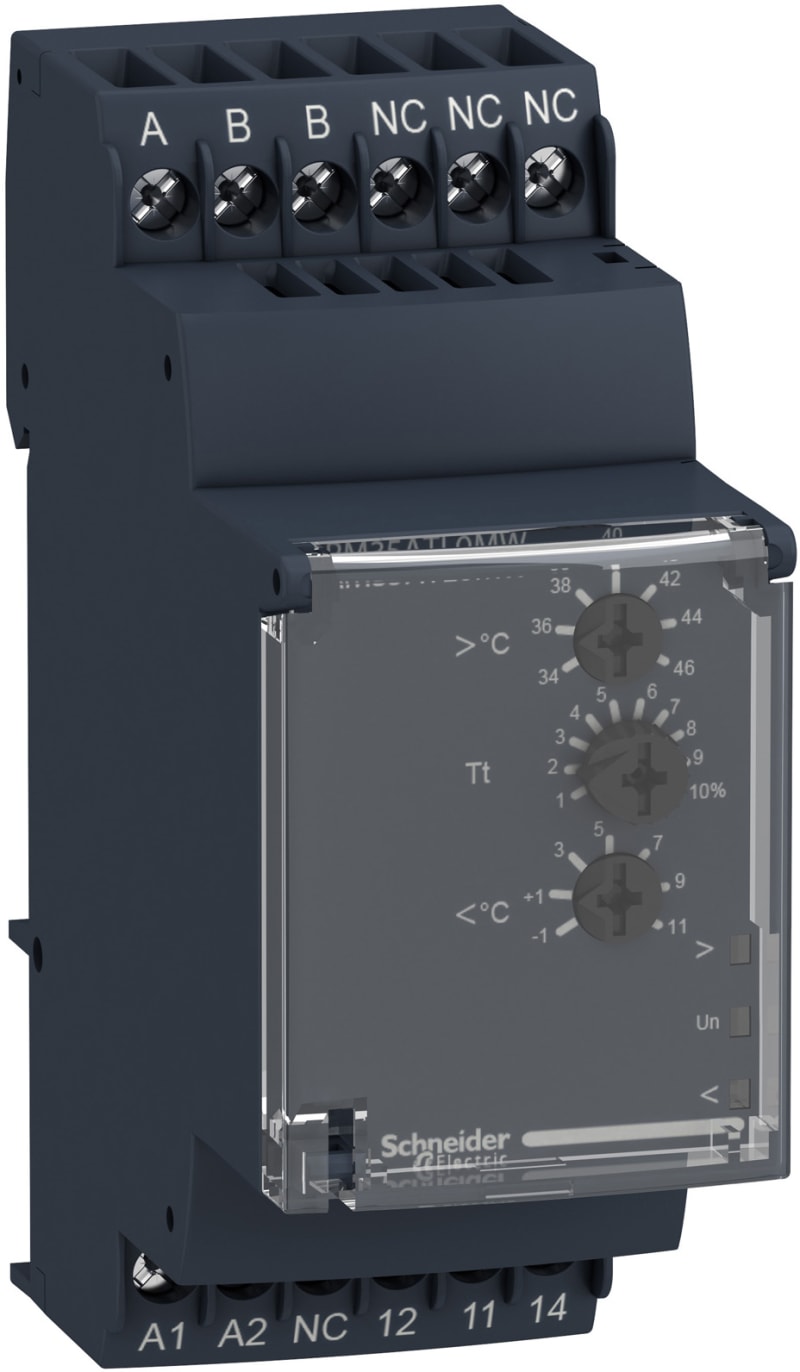

Telemecanique temperature control relay RM35-A - 24..240 V AC/DC - 1 OC RM35ATL0MW

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM35ATL0MW EAN / GTIN: 3389119405164 HS code: 8536.90 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Temperature control relays Product or component type: Elevator machine room temperature control relay Product specific application: For elevator machine rooms and 3-phase supplies Relay name: RM35AT Relay monitored parameters: Under temperature: -1...11°C; Over temperature: 34...46°C Time delay range: 0.1...10 s adjustable delay (tolerance: 0...10 % of the full scale value) Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum power consumption in VA: 3.5 VA AC Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1; DC-14 conforming to IEC 60947-5-1 time delay: Adjustable 1...10 s Tt- time delay upon fault Measurement range: +/- 1...46 °C Reset time: 8 s Maximum switching voltage: 250 V AC/DC [Us] rated supply voltage: 24...240 V AC/DC [Un] rated nominal voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC; 21.6…264 V DC Maximum power consumption in W: 0.6 W DC Resistance across terminals: 1.33 kOhm at temperature Width: 35 mm Output contacts: 1 C/O Contacts material: Cadmium free nominal output current: 5 A delay at power up: 0.2 s Measurement accuracy: +/- 2 °C Response time: <= 3.5 s + Tt (in case of temperature fault); <= 3.5 s (on disappearance of fault) Temperature probe type: Pt 100 - 3-wire Installed device: Pt 100 probe cable length <= 10 m Marking: CE : EMC 89/336/EEC; CE : 73/23/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1 operating voltage tolerance: - 10 % + 10 % Un DC; - 15 % + 10 % Un AC Supply frequency: 50/60 Hz +/- 10 % Insulation: Galvanic insulation between supply and measurement Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate local signalling: 1 LED green for power ON; 1 LED yellow for correct temperature (high R1); 1 LED yellow for correct temperature (low R2) Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load Control type: Without test button Immunity to microbreaks: 10 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6; NF EN 60255-6 Product certifications: GOST; GL; C-Tick; UL; CSA Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1; 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz Non-dissipating shock wave: 4 kV Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3389119405164
• SAP 1000257658
• Code 81144366
