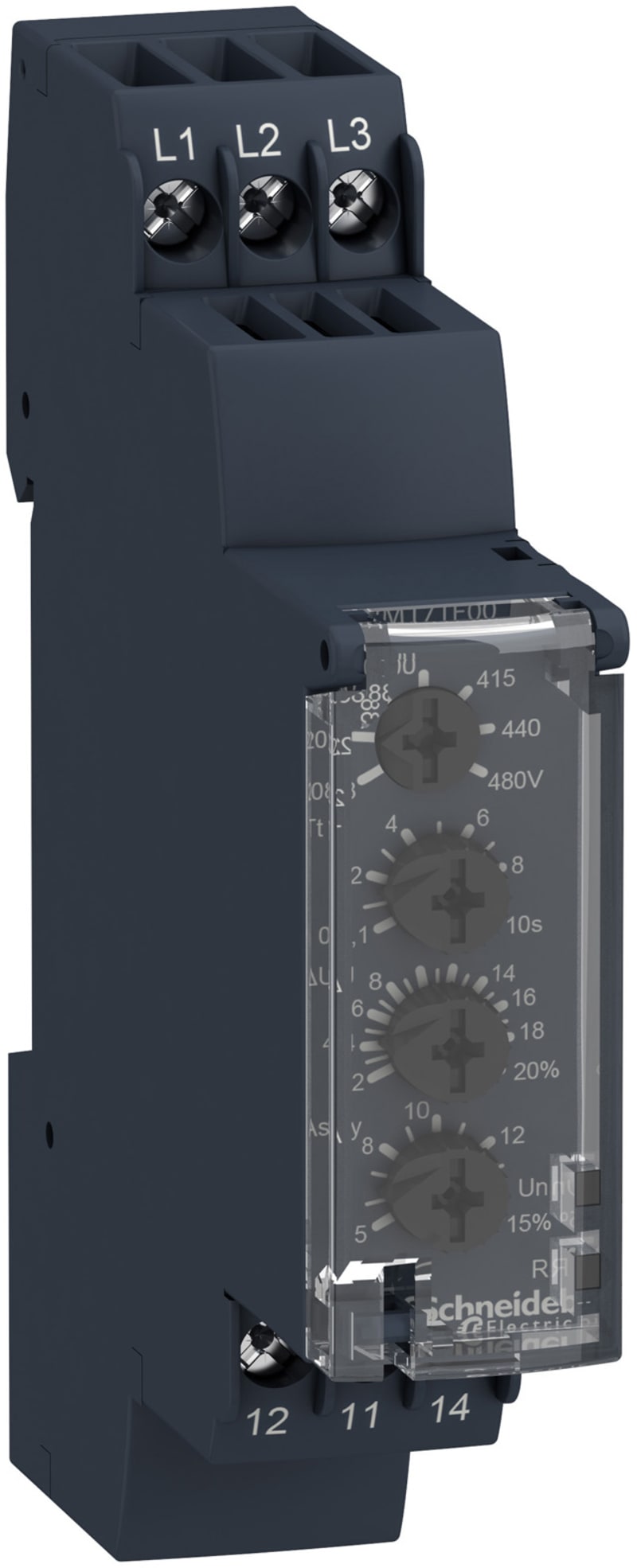

Telemecanique voltage control relay RM17-U - range 65..260 V AC RM17UAS15

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM17UAS15 EAN / GTIN: 3389119405126 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: Voltage control relay Relay name: RM17UAS Product specific application: For single-phase and DC supply Relay monitored parameters: Overvoltage or undervoltage detection Control type: Without test button Contacts type and composition: 1 C/O [Us] rated supply voltage: self-powered Supply voltage limits: 50…270 V AC/DC Measurement range: 65...260 V AC/DC Hysteresis: 5…20 % of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 1 % for time delay Time delay type: Adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault Setting accuracy of time delay: 10 % Reset time: 1500 ms time delay Power on delay: 1000 ms DC; 500 ms AC Output contacts: 1 C/O nominal output current: 5 A Maximum switching voltage: 250 V AC/DC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Power consumption in VA: 0…3 VA AC Maximum power consumption in W: 1 W DC Control circuit frequency: 50...60 Hz +/- 10 % Measurement accuracy: +/- 10 % of the full scale value Polarity: Non reversible polarity on DC supply Maximum measuring cycle: 150 ms measurement cycle as true rms value Quality labels: CE Operating rate: <= 360 operations/hour full load Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: GL; UL; GOST; CSA; C-Tick Directives: 89/336/EEC - electromagnetic compatibility; 73/23/EEC - low voltage directive Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5; 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5; > 500 MOhm at 500 V DC conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1; 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...2 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Width: 17.5 mm; 17.8 mm Height: 90 mm; 88.9 mm Depth: 72 mm; 71.1 mm Product weight: 0.09 kg; 0.09 kg Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Type of electric connection: Screw connection With detachable clamps: No Single-phase under voltage possible: Yes Three-phase under voltage possible: No Single-phase overvoltage possible: Yes Three-phase overvoltage possible: No Single-phase hysteresis possible: Yes Three-phase hysteresis possible: No Contains function DC-under voltage: Yes Contains function DC overvoltage: Yes Contains function DC-voltage hysteresis: Yes Voltage measuring range 1: 65–260 V Voltage measuring range 2: 65–260 V Type of voltage measuring range: AC/DC Rated control supply voltage AC 50 Hz: 110–240 V Rated control supply voltage AC 60 Hz: 110–240 V Rated control supply voltage DC: 110–240 V Voltage type for actuating: AC/DC Response value voltage: 50–270 V Min. adjustable delay-on energization time: 0 s Max. permitted delay-on energization time: 0.5 s Min. adjustable off-delay time: 0.1 s Max. permitted off-delay time: 10 s Number of contacts as change-over contact: 1
