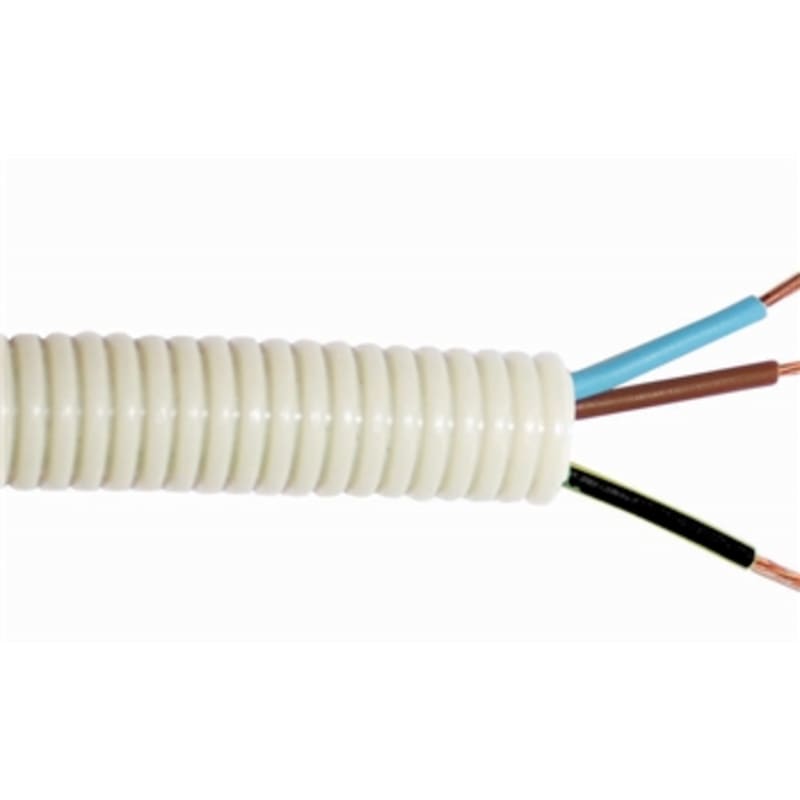

prefix® PN 16/3G2,5 (1251559)

Teccon 1251559 prefix® PN 16/3G2,5mm².

Manufacturer part number (MPN)

1251559 EAN / GTIN: 7042720014731 Sales unit: m Package quantity: 50 m Pressure rating: PN16 With metre indication: Yes Suitable for outdoor installation: No Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule) material: Polypropylene (PP) Halogen free: Yes Fire retardant version: Yes Bending strength: Flexible Compressive strength class: Medium (class 3 / 2 Joule) Impact strength: Medium (class 3 / 2 Joule) Surface mounting: Yes Suitable for installation on wood: Yes Suitable for hollow wall installation: Yes Suitable for concrete installation: Yes Machine and systems installation: Yes Suitable for underfloor installation (screed): Yes Outdoor installation: No Suitable for underground installation: No Inner diameter: 11.5 mm Outer diameter: 16 mm Operating temperature: -25–90 °C High conducting inner coating: No Colour: Grey Number of cores single core cable: 3 With draw wire: No Number of cores low voltage power cable: 3 With protective conductor: Yes With integrated POF conductor: No Nominal cross section conductor: 2.5 mm² Reaction-to-fire according to EN 13501-6: Class: Eca Flush-mounted installation: Yes Country of origin: Norway

HS Code

8544.49

• EAN 7042720014731
• SAP 1000063435
• Code 8550791
