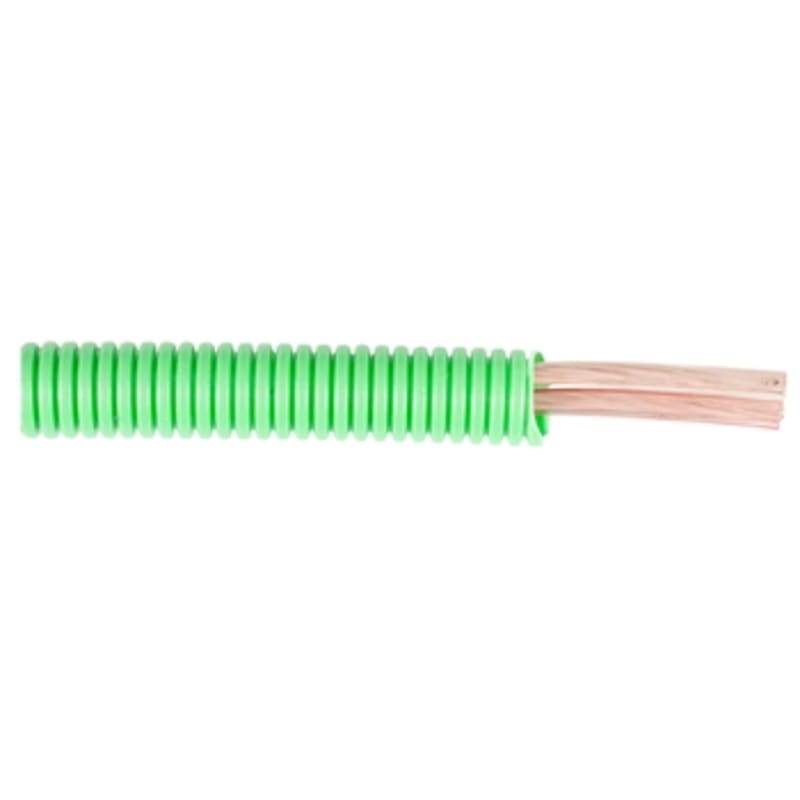

Teccon Prefix 16 Pre-Wired Conduit 2x4 mm² Speaker Cable

Pre-wired flexible conduit in the Prefix 16 system carrying two 4 mm² speaker conductors within a 16 mm outer diameter, halogen-free polypropylene tube. Metre-marked for accurate cutting and rated to medium impact class (2 Joule). Suited to surface, hollow-wall, concrete and screed installations for permanent audio distribution runs.

Manufacturer part number (MPN)

1251539 EAN / GTIN: 7042720150422 Sales unit: m Package quantity: 50 m With metre indication: Yes Suitable for outdoor installation: No Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule) material: Polypropylene (PP) Halogen free: Yes Fire retardant version: Yes Bending strength: Flexible Compressive strength class: Medium (class 3 / 2 Joule) Impact strength: Medium (class 3 / 2 Joule) Surface mounting: Yes Suitable for installation on wood: Yes Suitable for hollow wall installation: Yes Suitable for concrete installation: Yes Machine and systems installation: Yes Suitable for underfloor installation (screed): Yes Outdoor installation: No Suitable for underground installation: No Inner diameter: 11.5 mm Outer diameter: 16 mm Operating temperature: -25–90 °C High conducting inner coating: No Colour: Green Number of cores signal-/telecommunications cable: 1 With draw wire: No Number of loudspeaker cables: 2 With protective conductor: No With integrated POF conductor: No Nominal cross section conductor: 4 mm² Reaction-to-fire according to EN 13501-6: Class: Eca Flush-mounted installation: Yes Country of origin: Norway

HS Code

8544.49

• EAN 7042720150422
• SAP 1000005752
• Code 831142
