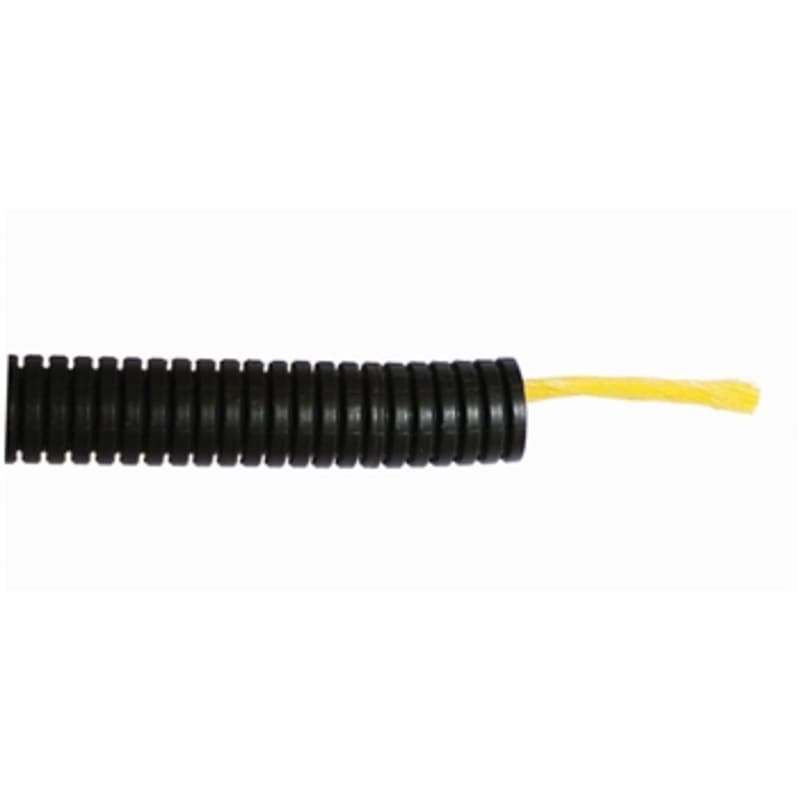

Teccon prefix® 20 Halogen-Free Conduit with Draw Wire

Teccon prefix® 20 is a halogen-free, pliable installation conduit supplied with an integrated draw wire. Inner diameter 11.5 mm, outer diameter 16 mm, medium compressive and impact strength (class 3 / 2 J). Suitable for concealed and flush-mounted installation in wood, concrete, screed and hollow walls; not for outdoor or underground use.

Manufacturer part number (MPN)

1251056 EAN / GTIN: 7042720014281 Sales unit: m Package quantity: 50 m Suitable for outdoor installation: No Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule) material: Polypropylene (PP) Halogen free: Yes Fire retardant version: Yes Bending strength: Pliable, self recovering Compressive strength class: Medium (class 3 / 2 Joule) Impact strength: Medium (class 3 / 2 Joule) Surface mounting: Yes Suitable for installation on wood: Yes Suitable for hollow wall installation: Yes Suitable for concrete installation: Yes Machine and systems installation: Yes Suitable for underfloor installation (screed): Yes Outdoor installation: No Suitable for underground installation: No Inner diameter: 11.5 mm Outer diameter: 16 mm Operating temperature: -25–90 °C High conducting inner coating: No Colour: Grey With draw wire: Yes With integrated POF conductor: No Flush-mounted installation: Yes Country of origin: Norway

HS Code

8544.49

• EAN 7042720014281
• SAP 1000086076
• Code 8578099
