Teccon
RG6 Antennecable 1/4,6 ANTI TWIN
Part number1010113EAN / GTIN7042720150668HS code8544.49
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

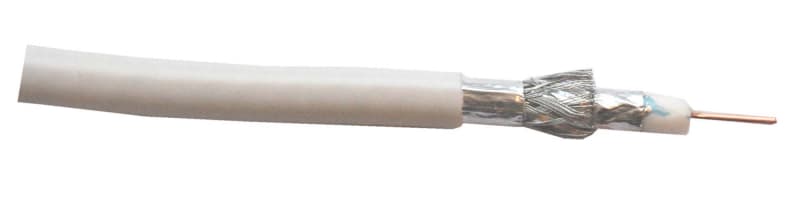

Teccon 1010113 RG6 Antennekabel 1/4,6 Anti Twin® 75m.
Technical Specifications
- Manufacturer part number (MPN)
- 1010113
- EAN / GTIN
- 7042720150668
- Sales unit
- m
- Package quantity
- 75 m
- UV resistant
- No
- Dielectric
- Polyethylene, foamed (foam PE)
- Weight
- 0.0431 kg/km
- Armouring
- No
- Colour outer sheath
- White
- Material outer sheath
- Polyvinyl chloride (PVC)
- Type of outer conductor
- Foil + braiding
- Inner conductor material
- Copper
- Characteristic impedance
- 75 Ohm
- Diameter inner conductor
- 1.02 mm
- Diameter outer conductor
- 4.6 mm
- Outer conductor material
- Aluminium
- Inner conductor category
- Class 1 = solid
- Armouring/reinforcement
- None
- Permitted cable outer temperature during assembling/handling
- -5–40 °C
- Suitable for underground installation
- No
- Halogen free according to EN IEC 60754-2
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Outer diameter approximate
- 6.8 mm
- With rodent protection
- No
- Halogen free according to EN 60754-1/2
- No
- Inner conductor surface
- Bare
- Outer conductor surface
- Bare
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- Number of screen layers
- 3
- Flame retardant according to IEC 60332-1-2
- Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- No
- Flame retardant according to IEC 60332-3-22 (Cat A)
- No
- Flame retardant according to IEC 60332-3-23 (Cat B)
- No
- Flame retardant according to IEC 60332-3-24 (Cat C)
- No
- Flame retardant according to IEC 60332-3-25 (Cat D)
- No
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-3
- No
- Circuit integrity according to IEC 60331-23
- No
- Paired co-axial cable
- No
- 2 core co-axial cable (twinax)
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7042720150668
- SAP 1200624195
- Code 83035819
Product Documentation
Document preview: RG6 Antennecable 1/4,6 ANTI TWIN (1010113) — Specification sheet
