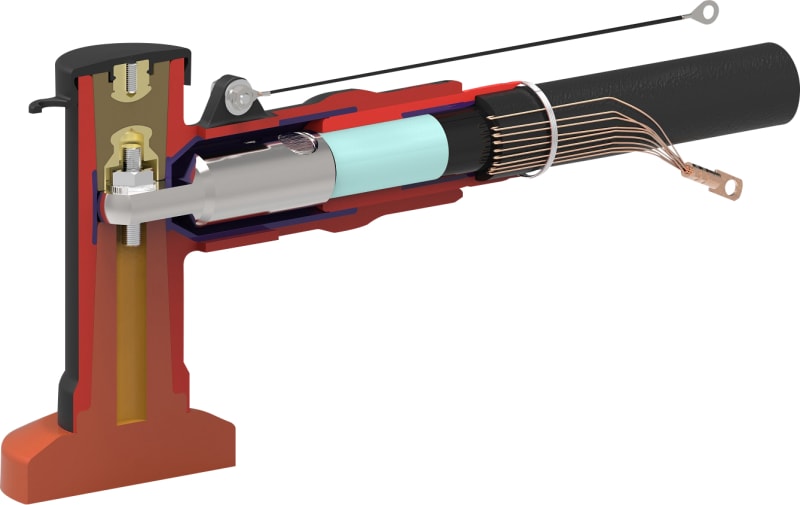

TE Connectivity RSTI-6855 T-Connector 36/42 kV 185-300 mm² Set of 3
Pricing
Request a quote
We reply within 24 hours
Product Description
TE Connectivity EN0639-000 is a set of three RSTI-6855 screened T-connectors rated 800 A at 36 and 42 kV for medium-voltage cable termination. The touch-safe screw-connection design accepts conductors from 185 to 300 mm² and includes mechanical cable lugs, with a 0.8 m earthing lead per connector. Suitable for indoor and outdoor installation on transformers, switchgear and ring-main units per EN 50180/EN 50181. Typical application is separable termination of XLPE polymer-insulated MV cables in distribution networks.
Technical Specifications
- Manufacturer part number (MPN)
- EN0639-000
- EAN / GTIN
- 4042368088906
- HS code
- 8544.42
- Sales unit
- pcs
- Suitable for indoor use
- Yes
- Suitable for outdoor use
- Yes
- Rated voltage U0/U (Um)
- 20.8/36 (42) kV
- Nominal current according to EN 50180/EN 50181
- C (630 A)
- Type of plug termination
- T-connector
- Connection type conductor
- Screw connection
- Suitable for number of cores
- 3
- Screened
- Yes
- Cable lug included
- Yes
- Nominal cross section
- 185–300 mm²
- Earthing cable length
- 0.8 m
- Width
- 70 mm
- Height
- 250 mm
- Length
- 180 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4042368088906
- SAP 1200552304
- Code 82888265
