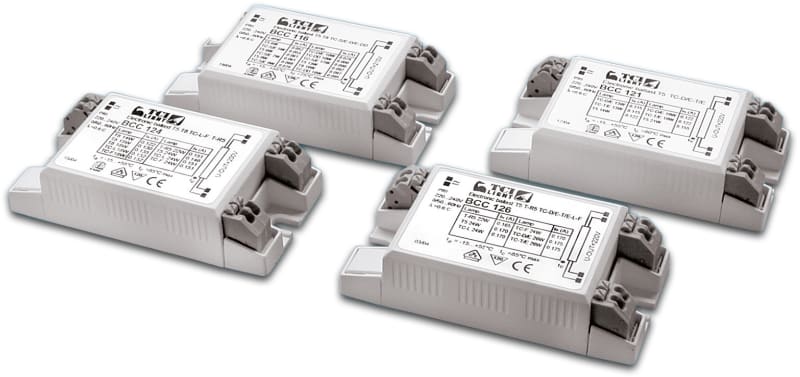

TCI BCC116 SL Electronic Ballast for 1× 4-16 W Compact Fluorescent Lamps

TCI BCC116 SL is an electronic ballast for a single compact or linear fluorescent lamp in the 4-16 W range, operating on 220-240 V mains. The plastic-housed unit measures 80 × 41 × 18 mm and is compatible with T16, T26, TC-D, TC-DD, TC-DEL, TC-S and TC-SEL lamp types. Protection class I with no dimming function. Typical use is retrofit and OEM installation in fluorescent luminaires.

Manufacturer part number (MPN)

BCC116 SL

Sales unit

pcs

Package quantity

50 pcs

Protection class according to IEC 61140

I

Width

41 mm

Model

Electronic

Height

18 mm

Housing

Plastic housing

Suitable for lamp power

4–16 W

With strain relief

No

Length

80 mm

For lamp type TC-D

Yes

For lamp type TC-DD

Yes

For lamp type TC-L

No

For lamp type TC-DEL

Yes

For lamp type TC-TEL

No

For lamp type T7

No

For lamp type T16

Yes

For lamp type T26

Yes

For lamp type T-R

No

For lamp type TC-T

No

For lamp type TC-S

Yes

For lamp type HI

No

Nominal voltage

220–240 V

For lamp type HM

No

For lamp type HS

No

For lamp type LS

No

For lamp type T16-R

No

For lamp type T38

No

For lamp type TC-F

No

For lamp type TC-QEL

No

For lamp type TC-SEL

Yes

For lamp type T-U

No

Multiwatt model

Yes

Suitable for number of lamps

1

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

Yes

Dimming DSI

No

Country of origin

Finland

HS Code

9405.99

• SAP 1000044584
• Code 8790086
