Swanson
Likriktartrafo Blackbox 24V 1A
Part numberSM30 24-1HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

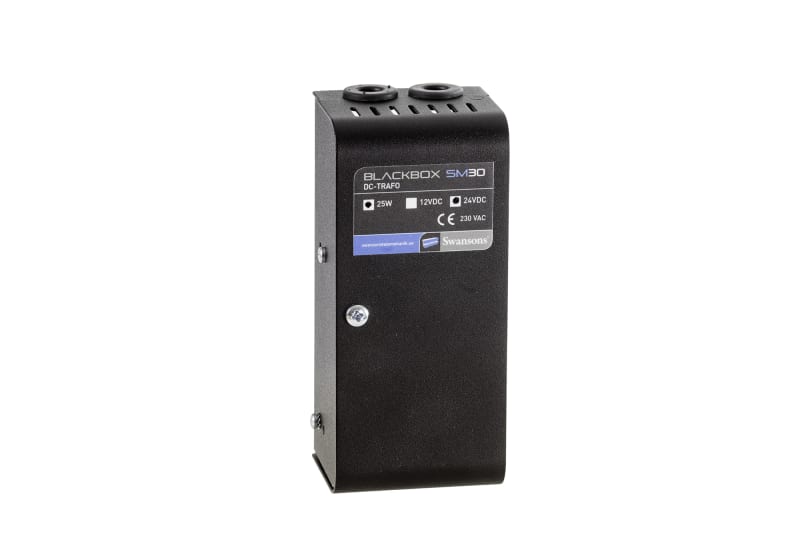

Swanson SM30 24-1 Stabilized power supply 25W 24V 1A in black well-ventilated plate housing. For wall mounting.
Technical Specifications
- Manufacturer part number (MPN)
- SM30 24-1
- Sales unit
- pcs
- El-nummer (NO)
- 5218063
- ETIM class
- SC002540
- Voltage
- 24 V
- Rated current
- 1 A
- Voltage type (supply voltage)
- DC
- 1st secondary output voltage
- 22–28 V
- Max. output current 1
- 1.1 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 1 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 188–264 V
- Rated supply voltage AC 60 Hz
- 188–264 V
- Rated supply voltage DC
- 135–373 V
- Output voltage stabilized
- Yes
- Power consumption
- 30 VA
- Power output
- 26 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Wall mounting possible
- Yes
- Direct mounting possible
- Yes
- Width
- 60 mm
- Height
- 140 mm
- Depth
- 57 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8504.40
Cross References
- SAP 1000759535
- Code 8522916
- El-nr 5218063
Product Documentation
Document preview: Likriktartrafo Blackbox 24V 1A (SM30 24-1) — Specification sheet
More from Swanson
Swanson
SSF-Battery Backup 24V 10A
GARI G1 24-10 /100
Swanson
Strömförs AGG 24V 1,0A
SM40/24-1
Swanson
Strömf 19" SM3100 24V 5A Battpl
SM3100 24/5
Swanson
SSF-Battery Backup 24V 5A
GARI G2 24-5 /45
Swanson

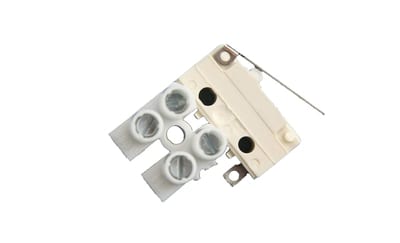

UK Sabotagekontakt TILL SM40
