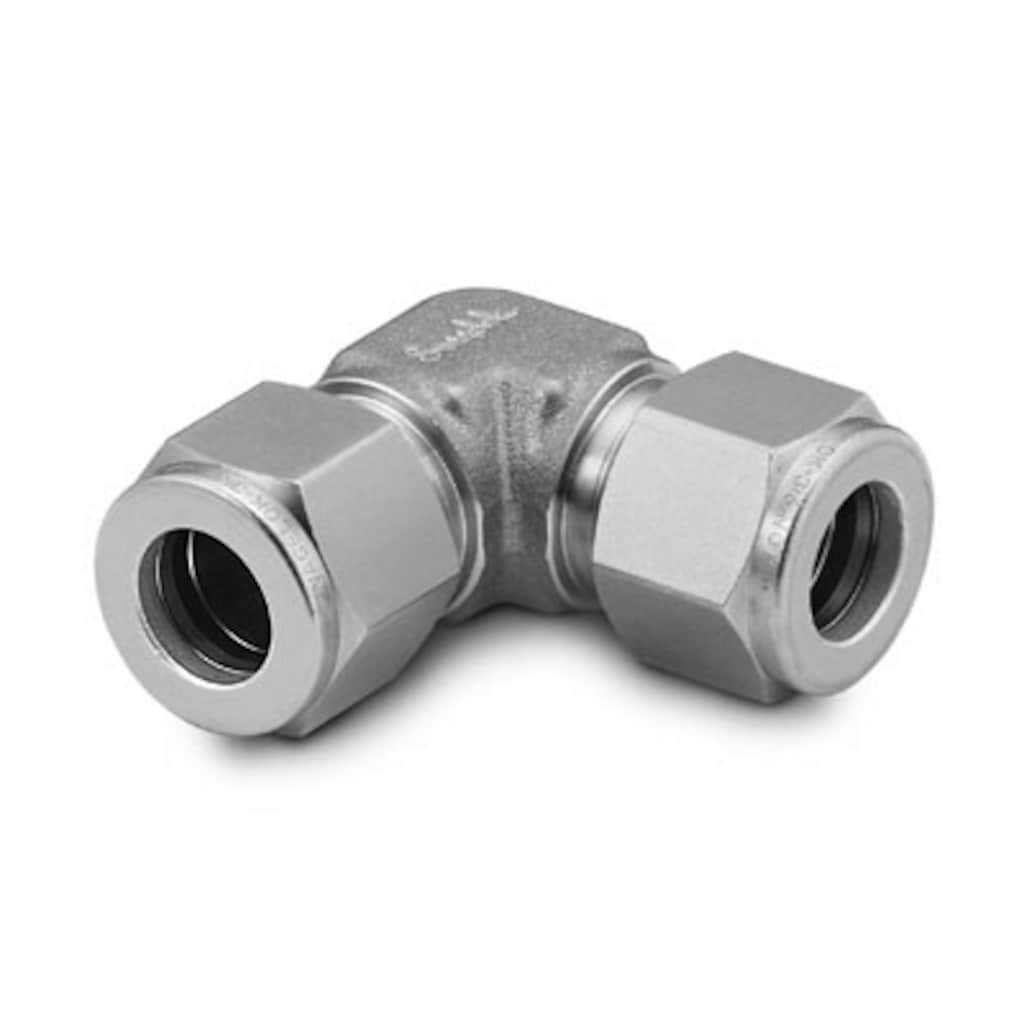

Swagelok SS-400-9 316 SS Tube Fitting, Union Elbow, 1/4 in. Tube OD
Pricing
Request a quote
We reply within 24 hours
Product Description
Swagelok SS-400-9 gaugeable tube fitting, union elbow, 1/4 in. tube outside diameter. Body in 316 stainless steel with Swagelok two-ferrule (back-ferrule/front-ferrule) mechanical grip end connections providing a leak-tight, gaugeable 90° tube-to-tube directional change on instrumentation and fluid-system tubing. End connections: 1/4 in. Swagelok tube fitting both ends. Not bored through. Supplied with Standard Cleaning and Packaging (SC-10). Working pressure and temperature ratings are determined by the selected tubing per Swagelok catalog MS-01-140; use with correspondingly sized, fully annealed 316/316L stainless steel tubing.
Technical Specifications
- Manufacturer
- Swagelok
- Product type
- Union Elbow
- Part number
- SS-400-9
- Body material
- 316 Stainless Steel
- Connection 1
- 1/4 in. Swagelok tube fitting
- Connection 2
- 1/4 in. Swagelok tube fitting
- End connection type
- Swagelok gaugeable two-ferrule tube fitting
- Bored through
- No
- Cleaning/packaging
- Standard Cleaning and Packaging (SC-10)
- Reference catalog
- Swagelok MS-01-140
- HS code
- 7307.29
Standards & Compliance
- Size / Series
- 1/4 in. tube OD
- Material
- 316 Stainless Steel
- HS Code
- 7307.29
Compatibility & Fitment
Swagelok gaugeable 316 SS tube fitting, 2 × 1/4 in. tube OD. Working pressure and temperature per the selected tubing (Swagelok catalog MS-01-140). Two-ferrule design; ferrules preswaged / gap-inspection gaugeable on installation.
Product Documentation
More from Swagelok
Swagelok
Swagelok SS-600-9 316 SS Tube Fitting, Union Elbow, 3/8 in. Tube OD
Swagelok
Swagelok SS-810-9 316 SS Tube Fitting, Union Elbow, 1/2 in. Tube OD
Swagelok
Swagelok SS-1210-9 316 SS Tube Fitting, Union Elbow, 3/4 in. Tube OD
Swagelok
Swagelok SS-1610-9 316 SS Tube Fitting, Union Elbow, 1 in. Tube OD
Swagelok
Swagelok SS-400-3 316 SS Tube Fitting, Union Tee, 1/4 in. Tube OD
Swagelok
Swagelok SS-600-3 316 SS Tube Fitting, Union Tee, 3/8 in. Tube OD
Swagelok
Swagelok SS-810-3 316 SS Tube Fitting, Union Tee, 1/2 in. Tube OD
Swagelok
Swagelok SS-1210-3 316 SS Tube Fitting, Union Tee, 3/4 in. Tube OD
Frequently asked questions
- What is the manufacturer part number for this Swagelok product?
- The manufacturer part number is SS-400-9.
- What is the HS code for SS-400-9?
- The customs tariff (HS) code for SS-400-9 is 7307.29.
- Who manufactures SS-400-9?
- SS-400-9 is a Swagelok product in the Pipes, Fittings & Flanges range.
- Is a datasheet available for SS-400-9?
- Yes — the SS-400-9 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SS-400-9?
- The minimum order quantity is 1.
