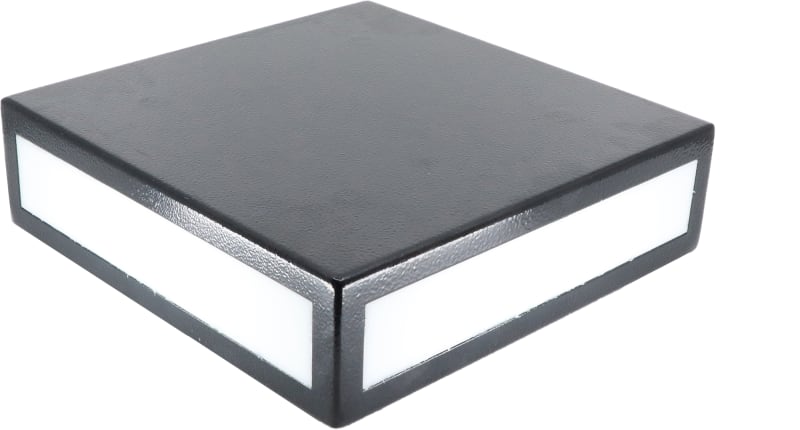

Stansefabrikken HD Bollard Luminaire LED 16.8 W RAL 9011 IP44
Pricing
Request a quote
We reply within 24 hours
Product Description
The Stansefabrikken SFF51834-R9011 is an HD bollard luminaire with an integrated 16.8 W LED module, aluminium housing finished in RAL 9011 and IP44 protection. Symmetric wide-beam distribution (>80°) delivers approximately 191 lm/W efficacy through a diffuser-lens optic. Typical applications include pathway, entrance and landscape lighting in exposed outdoor environments.
Technical Specifications
- Manufacturer part number (MPN)
- SFF51834-R9011
- Sales unit
- pcs
- El-nummer (NO)
- 1584810
- ETIM class
- SC000301
- Colour
- RAL 9011
- Protection class according to IEC 61140
- II
- Width
- 250 mm
- Conductor cross section
- 0.75 mm²
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Number of poles
- 2
- Length
- 250 mm
- Height/depth
- 70 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, opal
- Degree of protection (IP)
- IP44
- Suitable for number of light sources
- 4
- Beam angle
- > 80° - Extreme wide beam
- Max. system power
- 16.8 W
- Colour of light
- White
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 191 lm/W
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8538.10
Cross References
- SAP 1200682742
- Code 83405879
- El-nr 1584810
Product Documentation
