Stansefabrikken

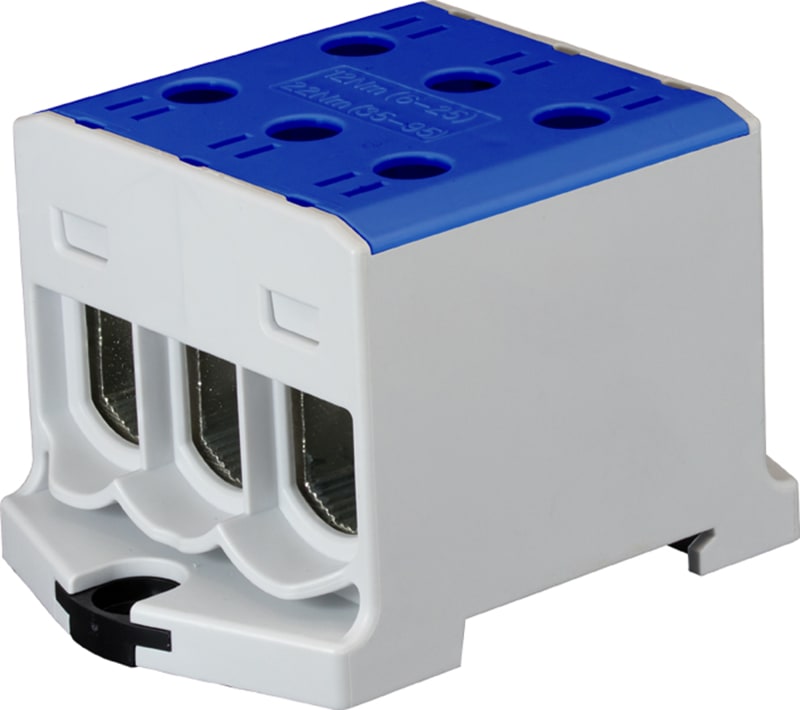

Coupling.terminal 3X95 Al/Cu BLUE
Part numberKVIAC13095BEAN / GTIN4018841012249HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Stansefabrikken KVIAC13095B Terminal block 3 x 95 Al/Cu Blue.
Technical Specifications
- Manufacturer part number (MPN)
- KVIAC13095B
- EAN / GTIN
- 4018841012249
- Sales unit
- pcs
- Mounting method
- DIN rail (top hat rail) 35 mm
- Colour
- Blue
- Rated voltage
- 1000 V
- Number of poles
- 1
- Number of clamp positions per pole
- 6
- Width/grid dimension
- 58 mm
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Dimension vertical to mounting plate outer side
- 84 mm
- Dimension parallel to mounting plate outer side
- 51 mm
- Connection position
- Sideways
- Rated current In
- 250 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4018841012249
- SAP 1200619874
- Code 83038148
Product Documentation
Document preview: Coupling.terminal 3X95 Al/Cu BLUE (KVIAC13095B) — Specification sheet
