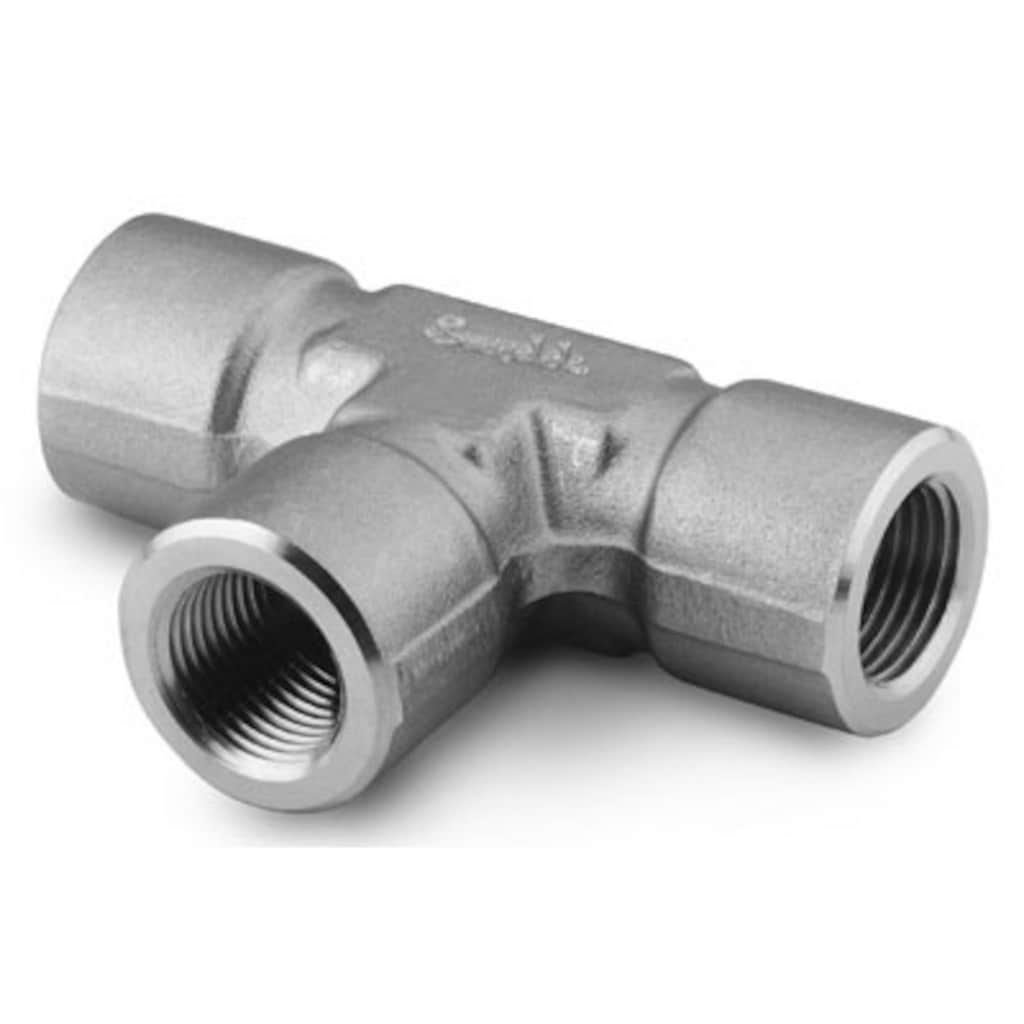

SS316 Equal Tee BSP Female 1"
Swagelok · Pipes, Fittings & Flanges · Equal Tees
Swagelok SS-16-T-RT, catalog identifier for the specific configuration. SS316 cast equal tee with female BSP threads on all three ends. 1" size. Supplied for general industrial and marine service under the applicable OEM specification. Manufacturer: Swagelok. Manufacturer part number: SS-16-T-RT. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- SS-16-T-RT
- HS code
- 7307.19
- Material
- AISI 316 Stainless Steel
- Pressure rating
- 150 lbs (PN10)
- Temperature range
- -20°C to +200°C
- Standard
- ISO 4144
- Standard size
- 1" BSP
- Thread standard
- BSP (ISO 228-1)
Compatibility
Swagelok 316 SS pipe fitting, female tee, 1 in. female ISO tapered (BSPT) thread all ends.
Standards
- ISO 9001
- NACE MR0175/ISO
- ASME B31.3
- ISO 228-1
- ISO 4144
- ISO tapered
- ASME B31.3.
- ISO 15156
Approvals
