Spiral Wound Gasket DN50 PN16 SS316/Graphite
Pricing
Request a quote
We reply within 24 hours
Product Description

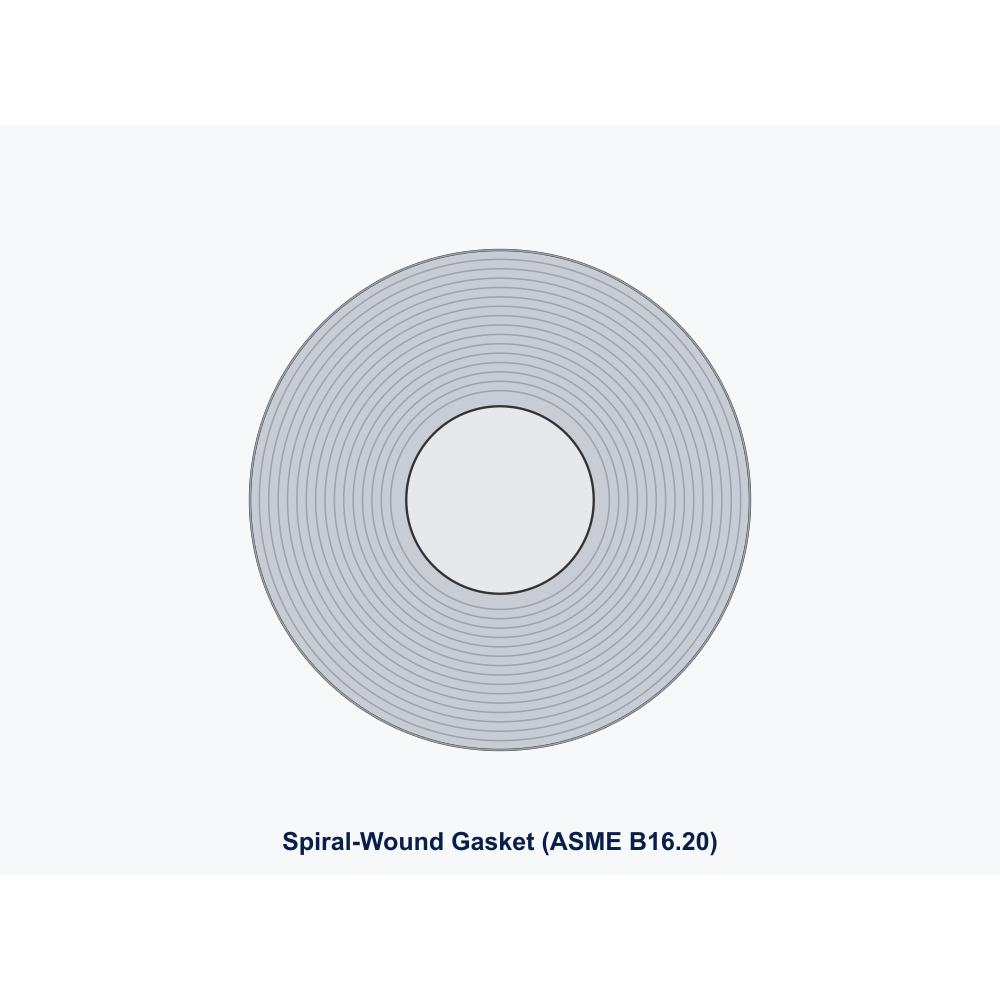

Trelleborg SWG-DN50-PN16 Spiral wound gasket DN50 PN16. SS316L winding with flexible graphite filler. Carbon steel outer ring, SS316 inner ring.
Technical Specifications
- Material
- SS316L / Graphite / CS Ring
- Standard
- EN 1514-2
- Standard size
- DN50 PN16
- Pressure rating
- PN16
- Temperature range
- -200°C to +550°C
- Approval
- API 6FA, API 6FB, ASME B16.20, EN 1514-2, TA-Luft VDI 2440, BAM (O2 service)
- Standards
- API 6FA, API 6FB, ASME B16.20, EN 1514-2
- Approvals
- CE, PED
- HS code
- 8484.10
Standards & Compliance
- Standard
- EN 1514-2
- Size / Series
- DN50 PN16
- Material
- SS316L / Graphite / CS Ring
- Pressure Rating
- PN16
- Temperature Range
- -200°C to +550°C
- Classification / Approval
- API 6FA, API 6FB, ASME B16.20, EN 1514-2, TA-Luft VDI 2440, BAM (O2 service)
- HS Code
- 8484.10
Compatibility & Fitment
DIN EN 1514-2 / ASME B16.20 spiral wound gasket, SS316 winding with flexible graphite filler. Trelleborg Sealing Solutions supplies flange sealing systems; for spiral wound specifically reference the flange-seals portfolio.
