Spelsberg

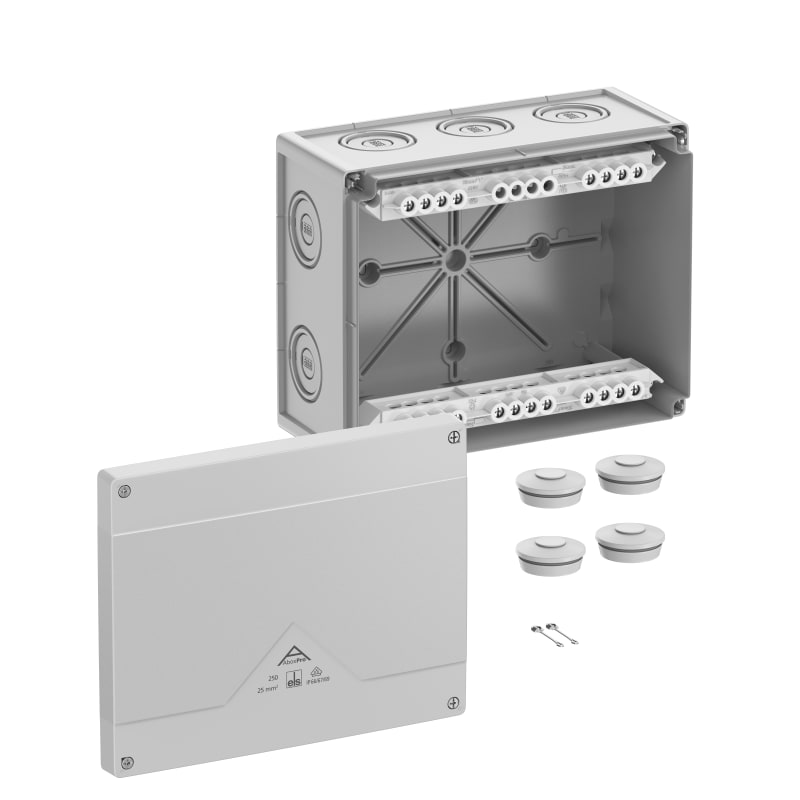

Abox Pro 250-25² (42542001)
Part number42542001EAN / GTIN4013902663484HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Spelsberg 42542001 Branch Box, IP66/IP67/IP69, max. 25², IK09, KL II, Ui 690V AC, Ui 690V DC, DNV, VDE, halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 42542001
- EAN / GTIN
- 4013902663484
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Number of clamp positions per pole
- 4
- Number of poles
- 5
- With strain relief
- No
- Model
- Junction box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 25 mm²
- Equipped with
- Screwed terminal
- Shape
- Rectangular
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- No
- Mounting under water
- No
- Inlet from the rear
- Yes
- Length
- 202 mm
- Width
- 252 mm
- Depth
- 120 mm
- Connectable
- No
- Number of inlets
- 14
- Type of housing feed-through
- Preembossing
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP66/IP67/IP69
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- No
- Casting compound included
- No
- Sealable
- Yes
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Explosion-tested version
- No
- For Ex-zone gas
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013902663484
- SAP 1200730344
- Code 83869472
Product Documentation
Document preview: Abox Pro 250-25² (42542001) — Specification sheet
